SATVW4512VT
These quality ATV winches by Sherpa are a great addition to your quad motorbike or ATV and will come in handy for so many applications and uses. Supplied with 12m of synthetic rope, this winch is a great upgrade and offers peace of mind you can recover yourself if ever stuck.
*BRAND NEW MODEL*
Adding a winch to your quad bike or ATV can be a great addition allowing travel to places you might otherwise avoid. The Sherpa ATV winch is over-engineered with ample power to pull bogged ATV's from mud, creeks, up hills or anywhere you dare to venture. ATV winches are also handy for dragging logs, straightening posts plus many other farm uses needing mechanical assistance. Popular for ATV's such as Polaris, Can-am as well as Yamaha and Honda quad bikes, these winches will not disappoint.
Note, the Sherpa ATV winch is designed as a recovery winch. It has limitations and should not be relied on for hoist type applications. If the application requires winching out and lowering of loads, it's suggested a electric braked winch be considered such as the Sherpa Grunter or Sherpa Tow Truck winch.
Specifications | Value |
---|---|
Rated Line Pull | 4,500lb (2,045 kg) |

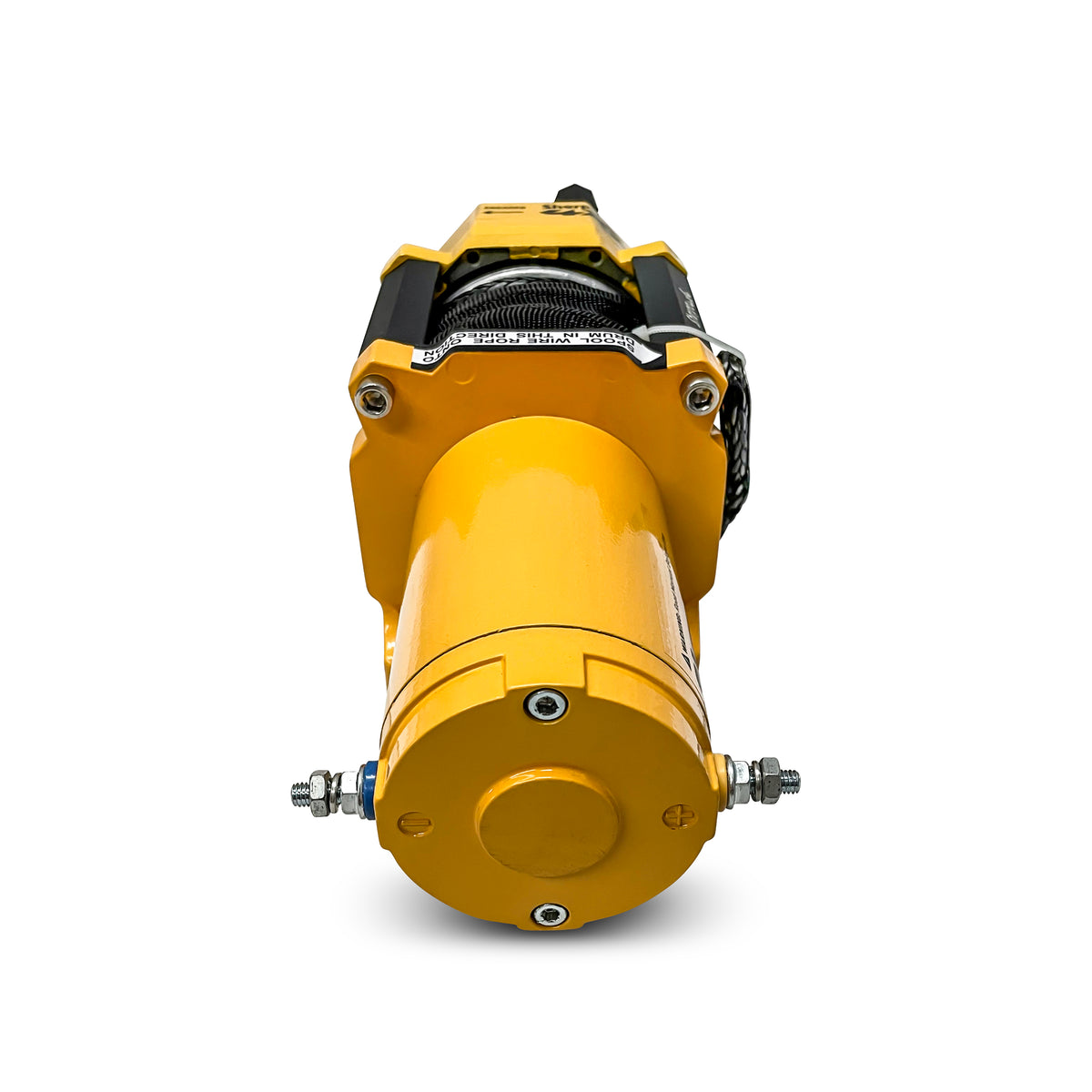

Motor | 1.9hp 12v heavy duty winch motor |
Speed | Single |
Gear Box | 200:1 3 stage planetary gearbox |
IP Rating | 68 |
Rope | 0.2" (5mm) x 40ft (12m) synthetic rated to 6,000lb avg. breaking strain |
Drum Size (Dia x Length) | 2.0" x 3.0" (52mm x 76mm) |
Mounting Bolt Pattern | 3.0" x 4.88" (76mm x 124mm) |
Overall Dimensions | 12.75" x 4.65" x 4.96" (324mm × 118mm × 126mm) |
Total Weight | 20lb (9 kg) |

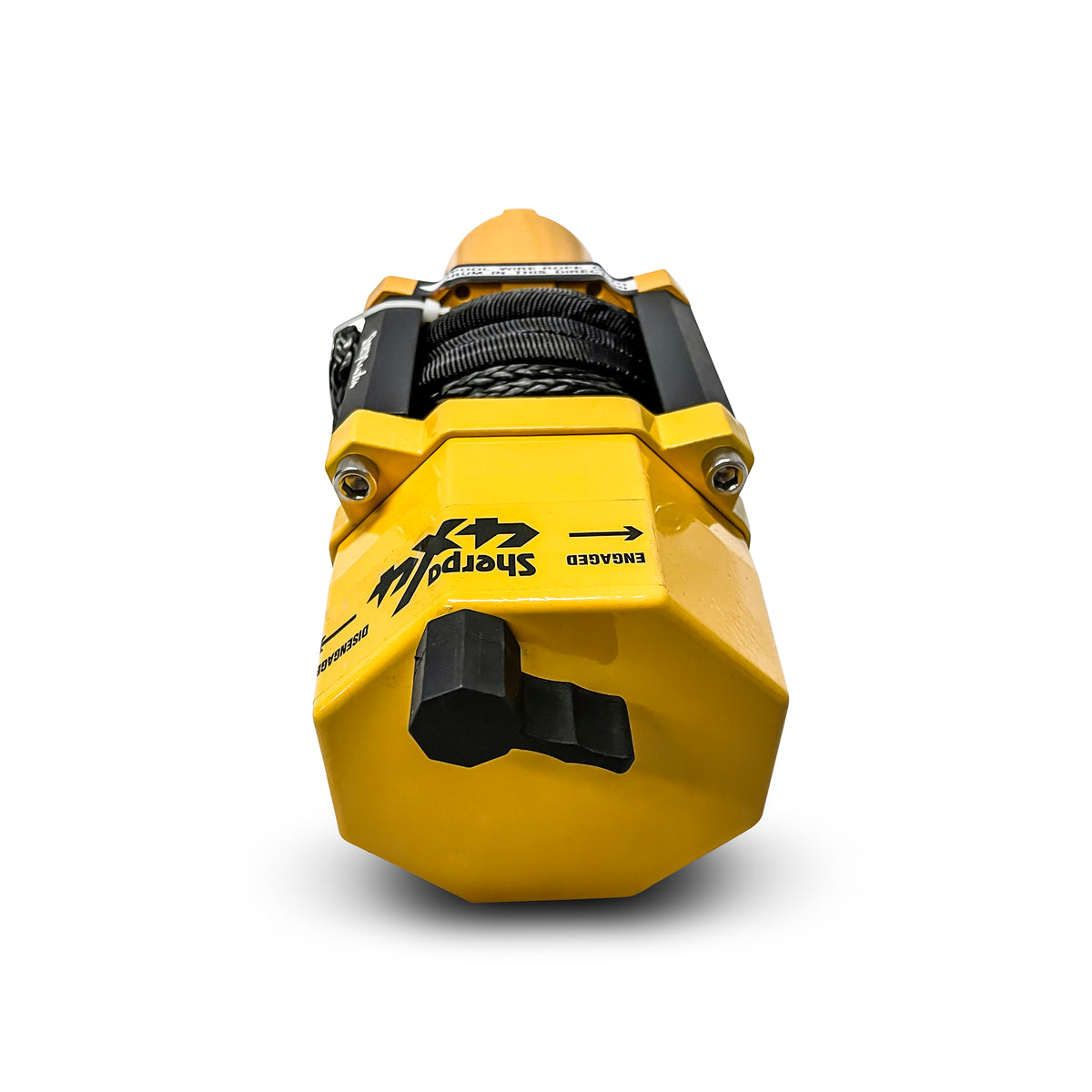

Clutch | 180 degree turn, free spooling, slide ring gear |
Brake | Automatic |
Duty Cycle | Intermittent |
Fairlead | Aluminium hawse |

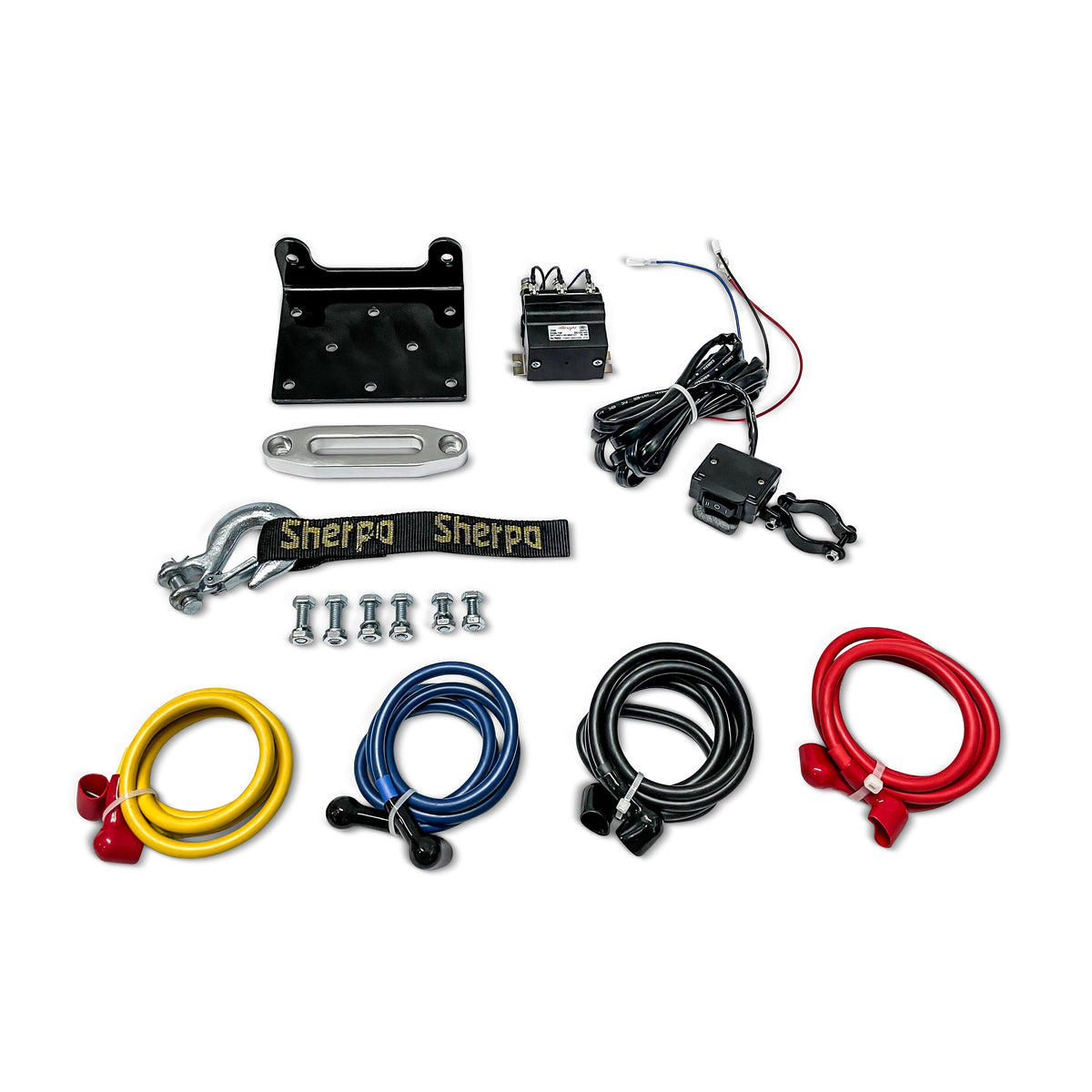

Battery Leads | Included |
Warranty | 2 Years |
Line Pull (Lb) | Line Speed (ft/min) | Motor Current (A) |
---|---|---|
0 | 16.5 | 25 |
1,000 | 11.8 | 75 |
2,000 | 9.5 | 110 |
3,500 | 7.2 | 150 |
4,500 | 4.6 | 185 |
