ATV Winches

A small off-road machine can become surprisingly hard to recover once it is buried in mud, hung on a bank, or pulling a loaded trailer. Choose winch capacity from the machine's loaded weight and the terrain rather than from dry vehicle weight alone. An ATV/UTV winch should provide useful reserve without being so large that it overwhelms the battery, mounting plate, or front structure. A pulley block can create mechanical advantage for a difficult pull when the anchor and rigging are rated appropriately. For a heavy side-by-side, farm UTV, or machine carrying tools and cargo, verify the actual gross weight before assuming a winch sold for small ATVs will be adequate.

ATV and UTV batteries are much smaller than full-size truck batteries, and their charging systems have limited output. The engine should normally be running during a recovery when safe and consistent with the winch instructions, but the charging system may still not replace energy as quickly as the winch uses it. Use short, correctly sized cables directly to the battery and keep terminals clean and tight. Make short controlled pulls rather than holding the switch continuously at high load. If the winch slows dramatically, the battery voltage collapses, or the cables become hot, stop and test the battery and connections instead of installing a larger fuse.

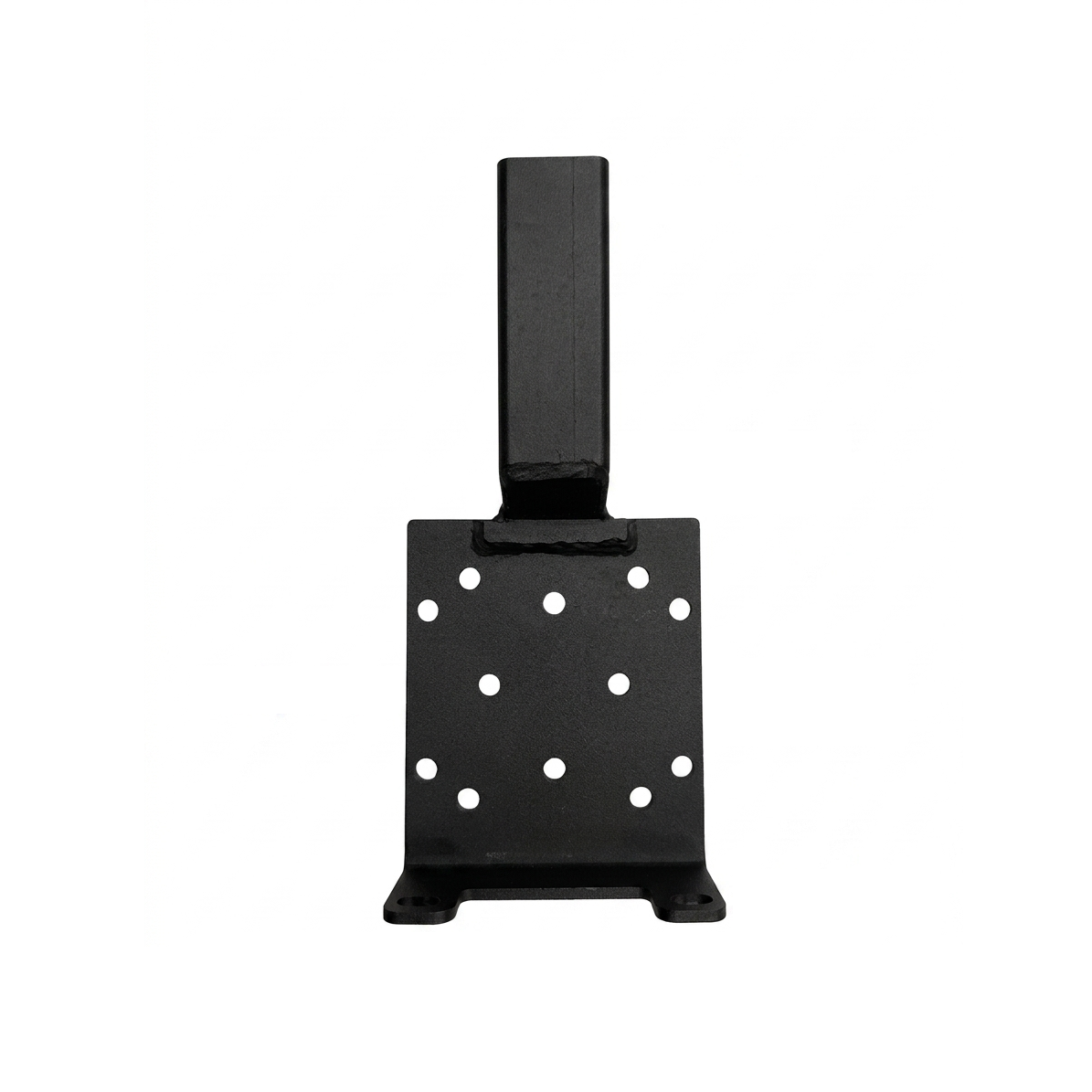

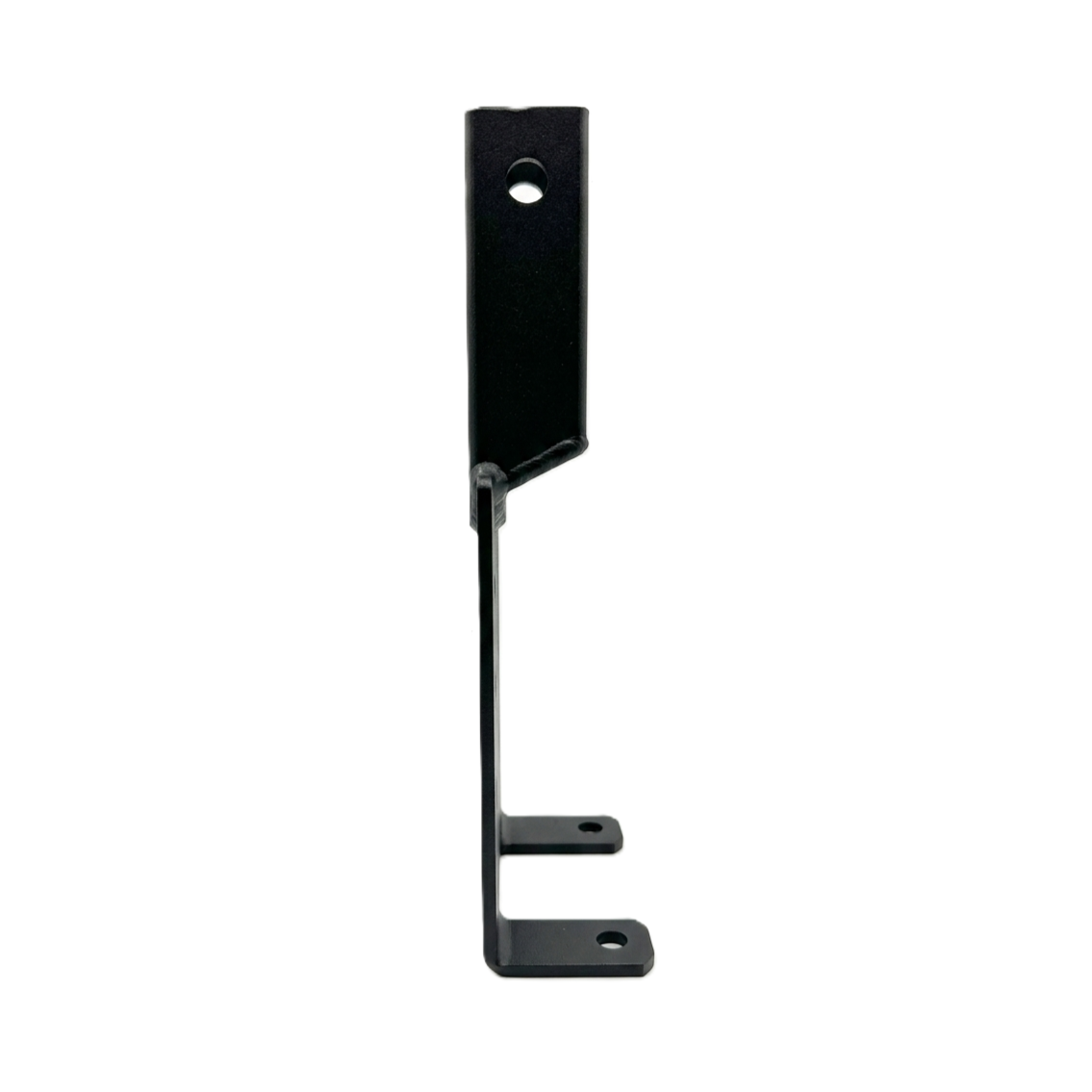

Use a model-specific winch plate or a properly engineered cradle attached to the machine's frame. The fairlead should line up with the center of the drum and the winch should not interfere with steering, suspension, radiator airflow, or body panels. Avoid mounting through thin bumper skins or cargo racks that were not designed for recovery loads. Compact ATV installations also need enough access to operate the clutch and service the rope. Route cables away from exhaust heat, sharp edges, and moving suspension. After the first few loaded recoveries, recheck mounting bolts because the bracket and hardware can settle.

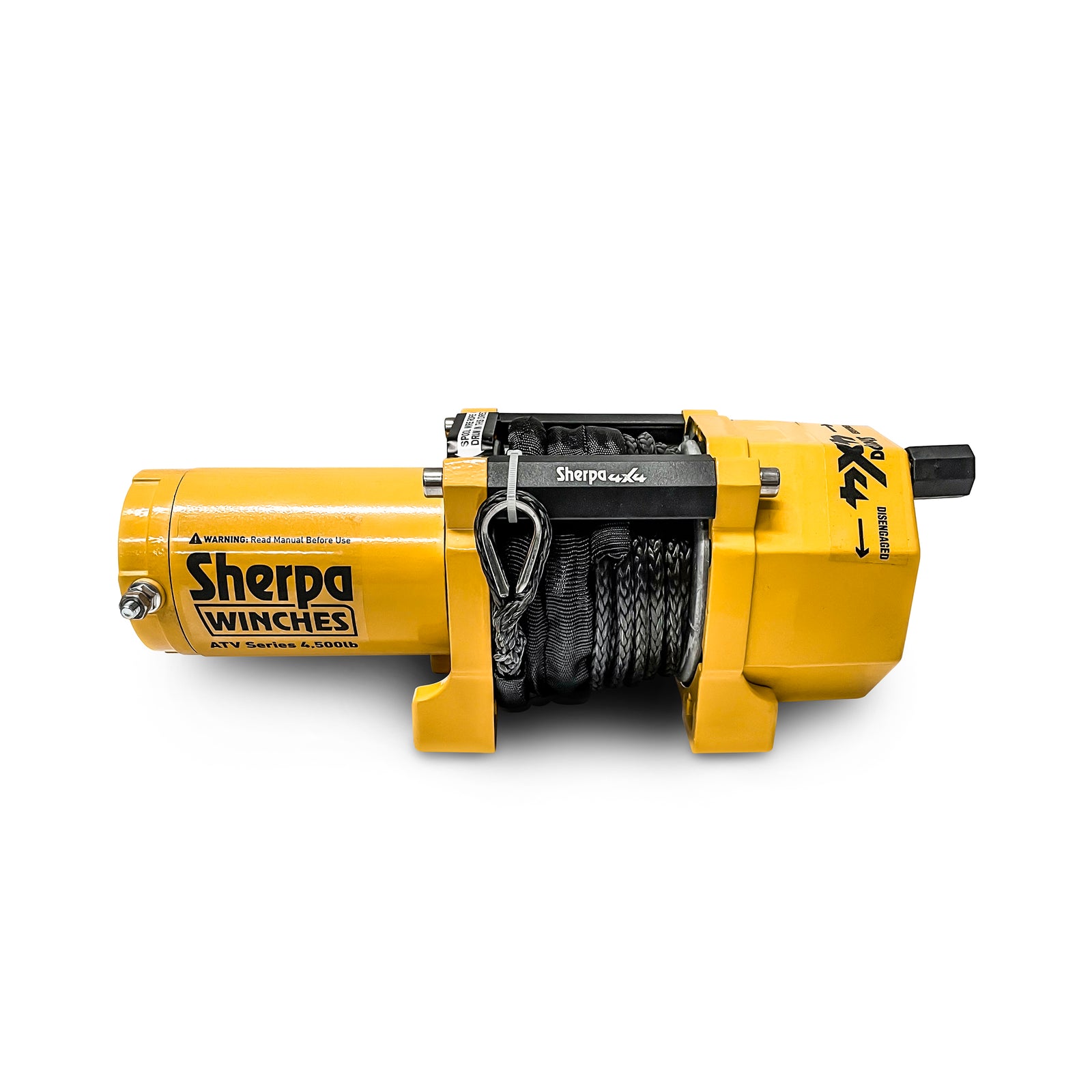

Yes. Synthetic rope is light and easy to handle, which suits a compact ATV or UTV, but its smaller diameter means abrasion damage can become serious quickly. Inspect the first few feet carefully because that section sees the most contact with rocks, roots, and anchors. Keep the hawse fairlead smooth and make sure the rope cannot rub on bumper edges at extreme pull angles. After mud or sand use, rinse the rope and allow it to dry before respooling under light tension. Replace it if there are deep cuts, melted fibers, severe fuzzing, or flattened damaged sections.

Sherpa offers model-specific wireless control options for ATV winches. Check compatibility with the exact winch and control socket before ordering rather than assuming a 4x4 remote will plug in. Wireless control can be useful when the operator needs to stand away from the machine to watch the rope and anchor, but the standard control should remain available as a backup. After installation, test IN and OUT direction with the winch unloaded and confirm the remote stops immediately when the button is released. Keep the receiver and wiring protected from water, mud, and moving components.
