Electrical

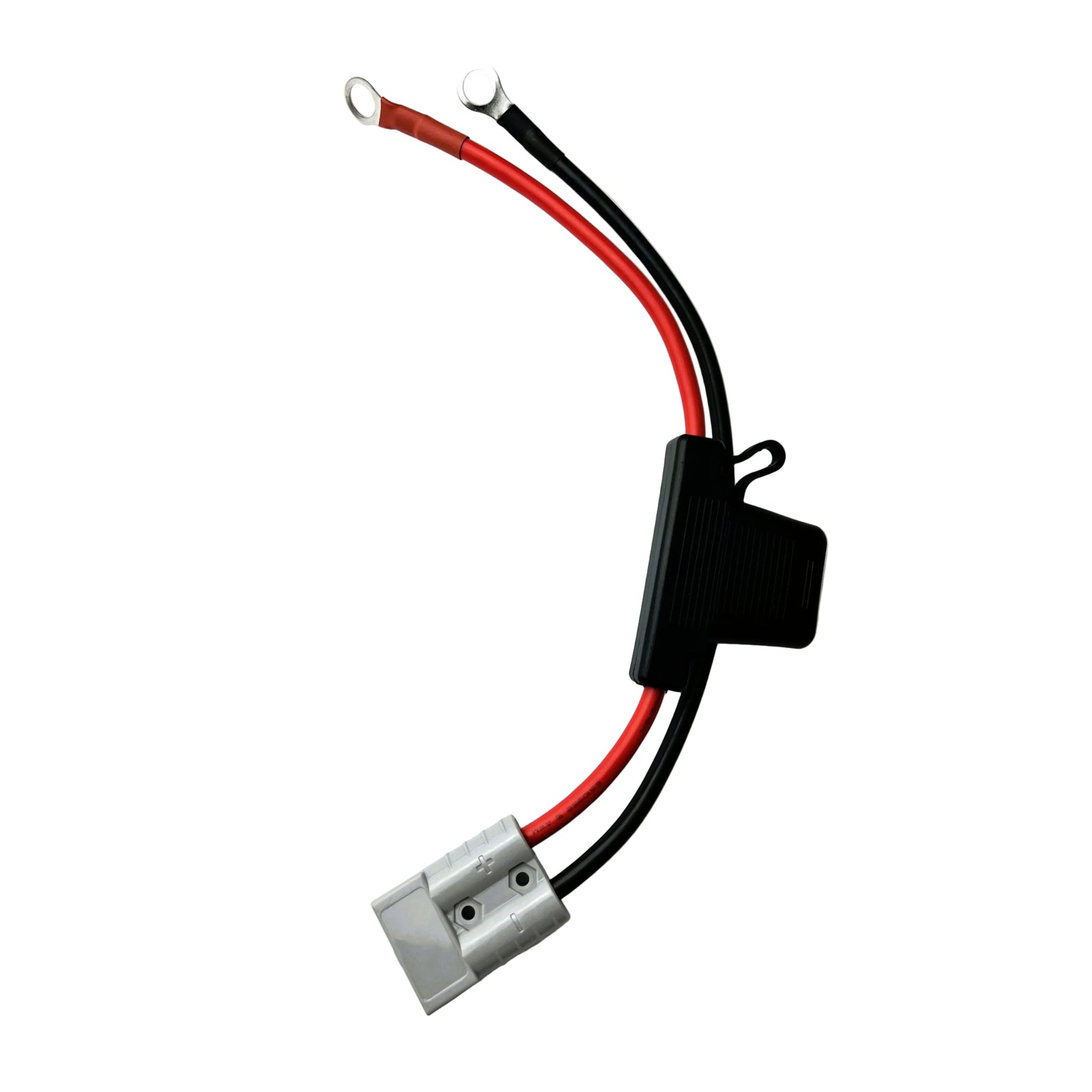

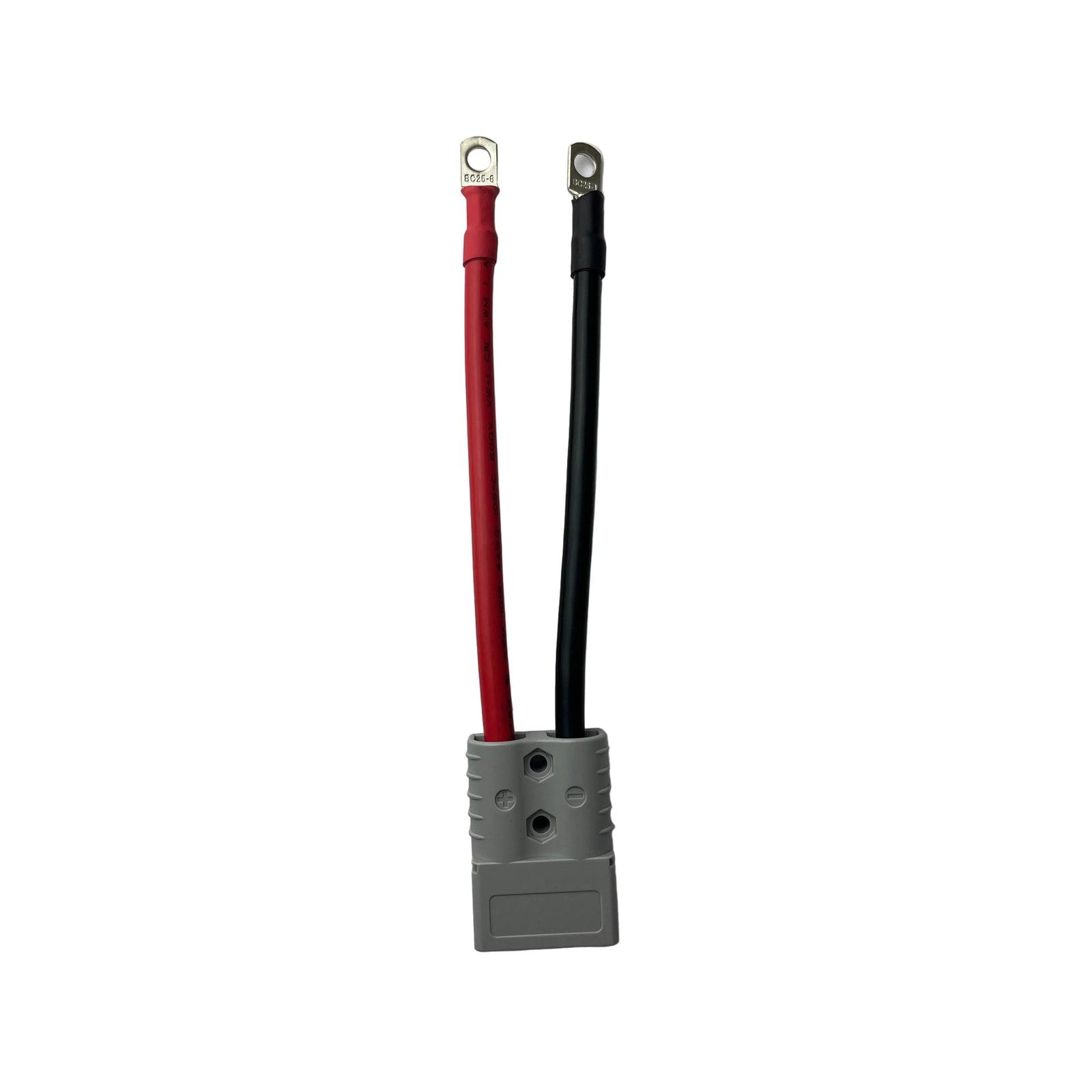

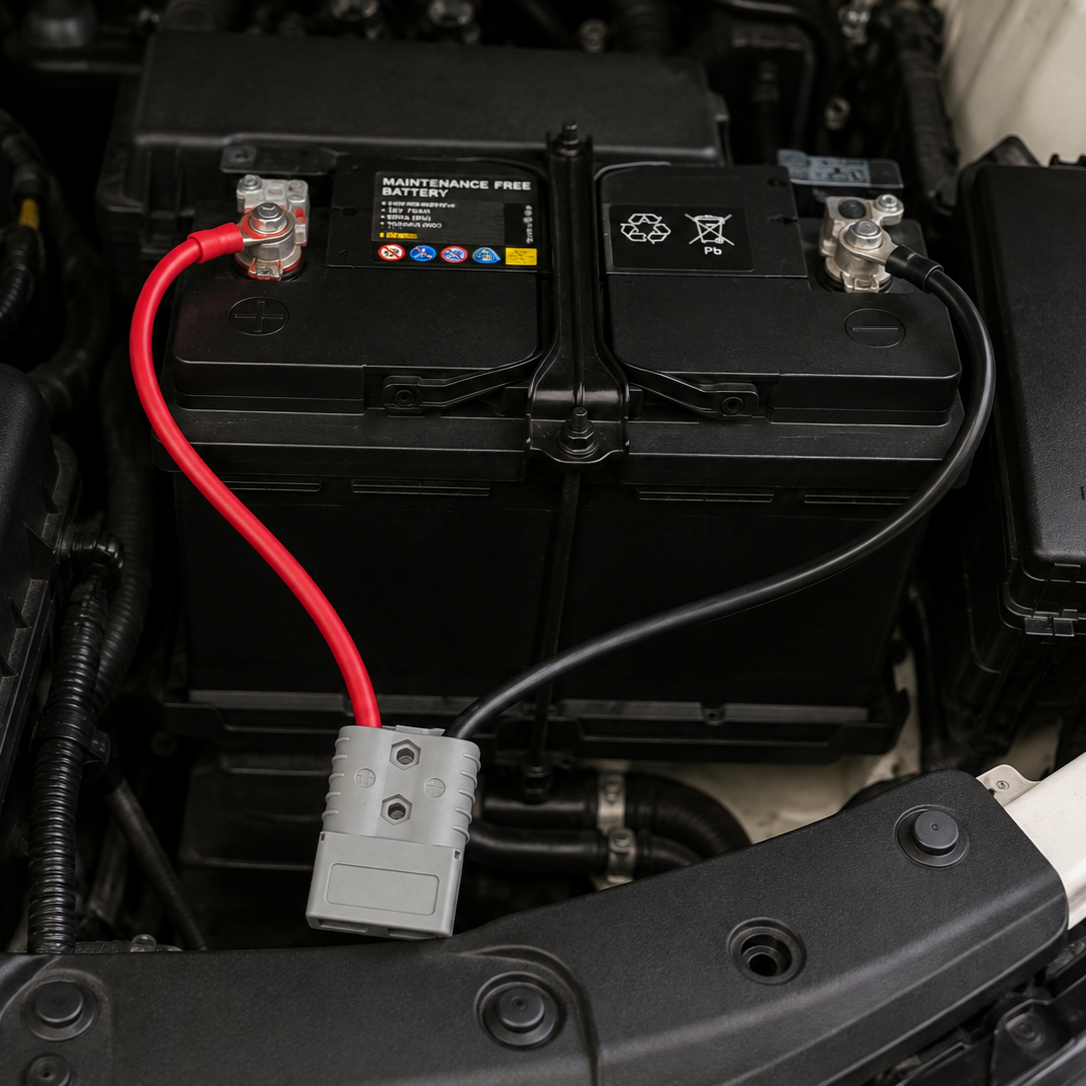

Cable size is based on current, total circuit length, allowable voltage drop, installation temperature, and the type of load. A 12V winch can draw several hundred amps and requires far heavier cable than a 40A DC/DC charger or tire compressor. Long cable runs to a rear battery, trailer winch, or truck bed increase the required conductor size. The connector, fuse holder, and isolation switch must also be rated for the same current. A circuit is not upgraded by installing heavy cable if the plug or breaker remains undersized. For high-current circuits, use properly crimped lugs, short runs where possible, and direct negative returns rather than relying on questionable chassis connections.

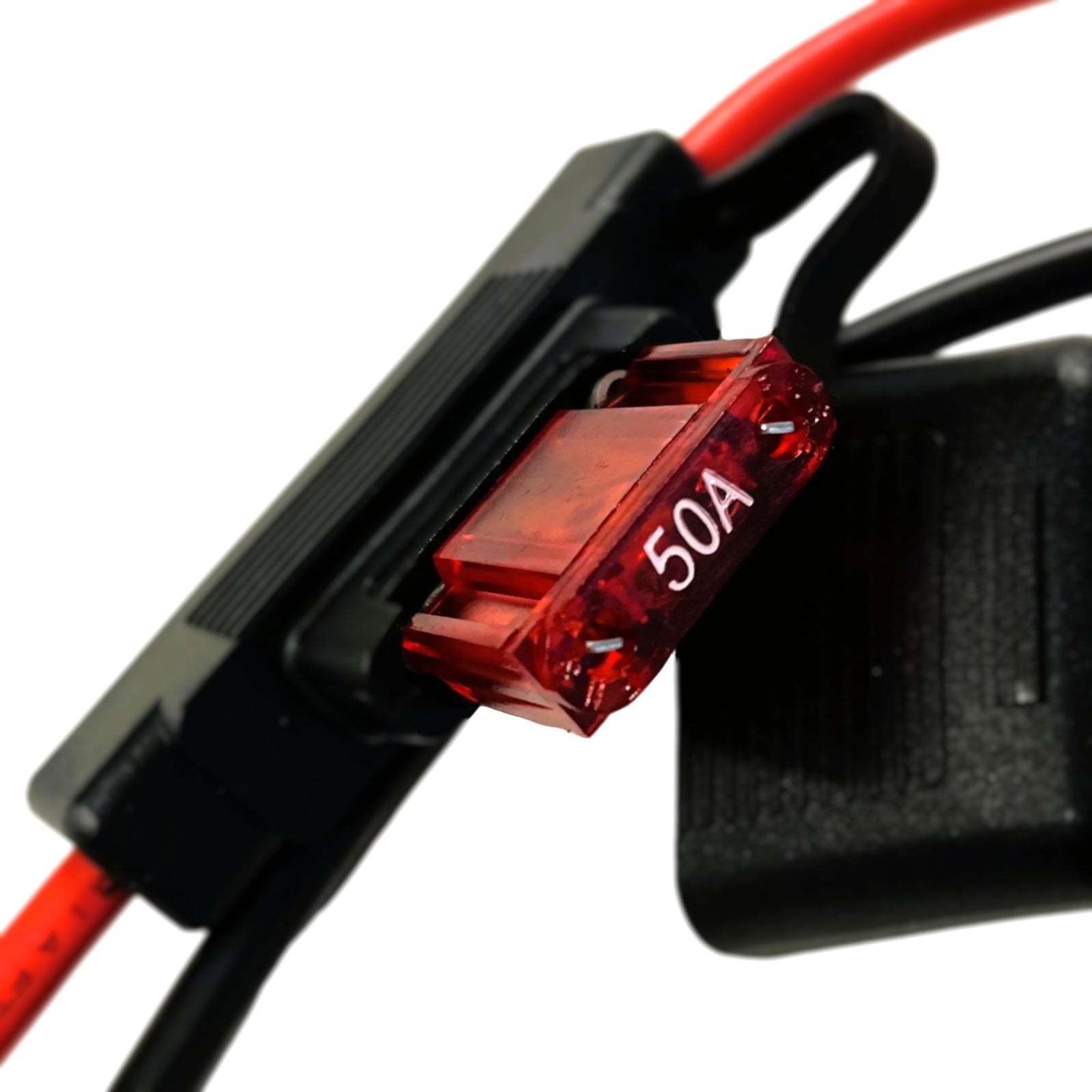

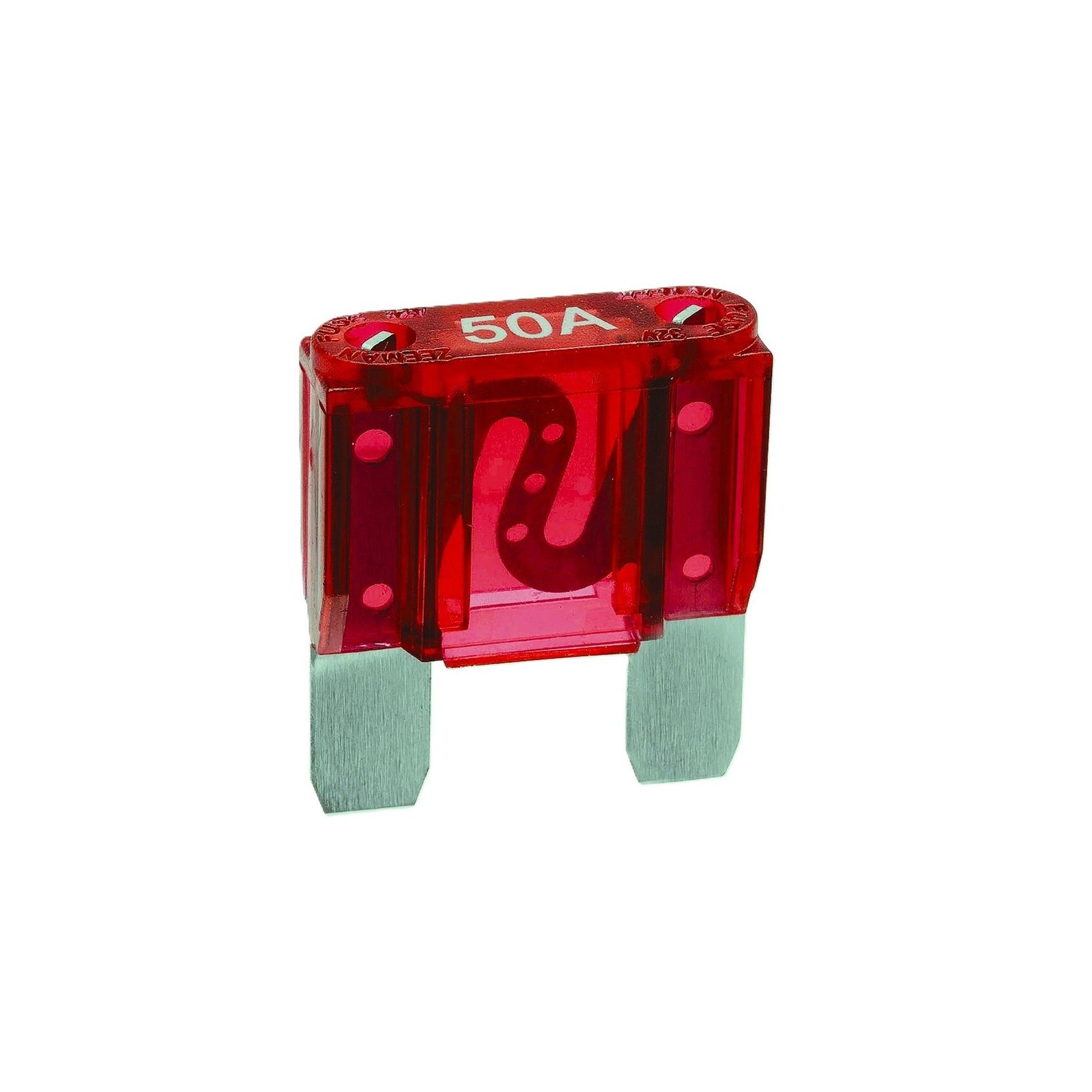

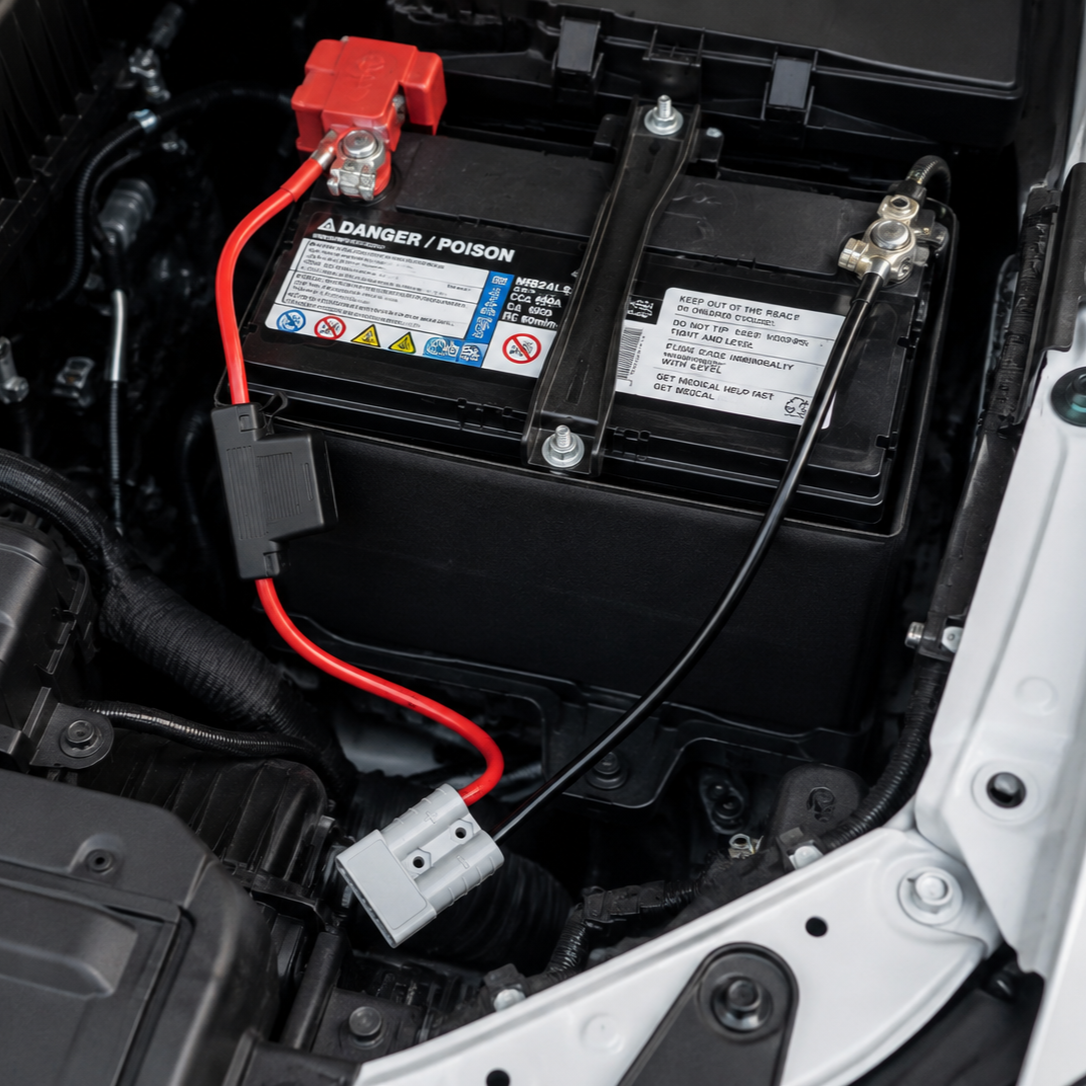

Both protect wiring from excessive current, but a fuse must be replaced after it operates while a circuit breaker can be reset. A DC breaker can also provide a convenient service disconnect in some accessory circuits. Selection should be based on cable protection, fault current, environmental conditions, and manufacturer requirements. Battery systems can deliver very high short-circuit current, so use components specifically rated for DC interruption. Do not automatically replace a fuse with a breaker of the same printed amperage without checking its trip characteristics and interrupt rating. Repeated tripping or blown fuses indicate a problem that should be diagnosed rather than solved by increasing the rating.

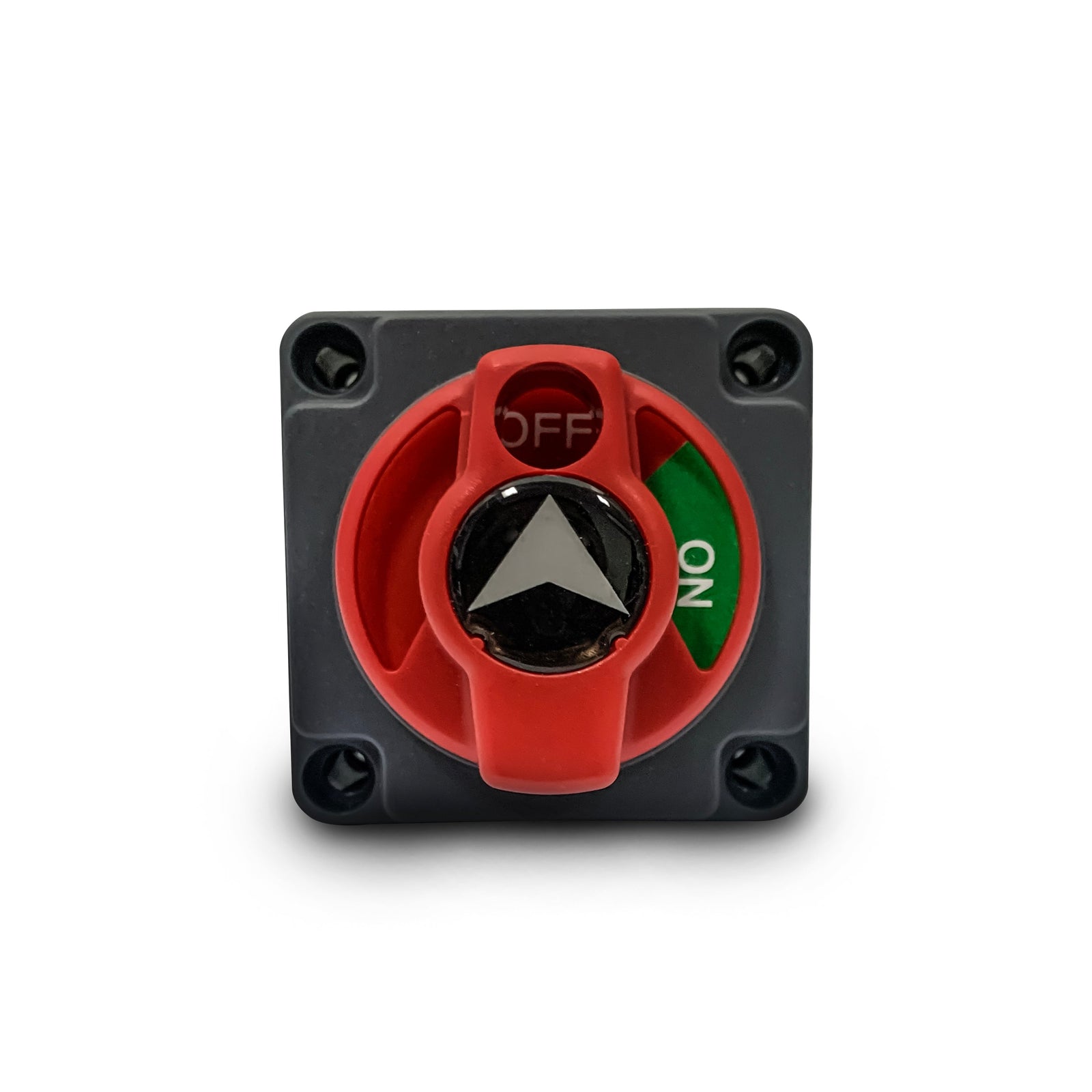

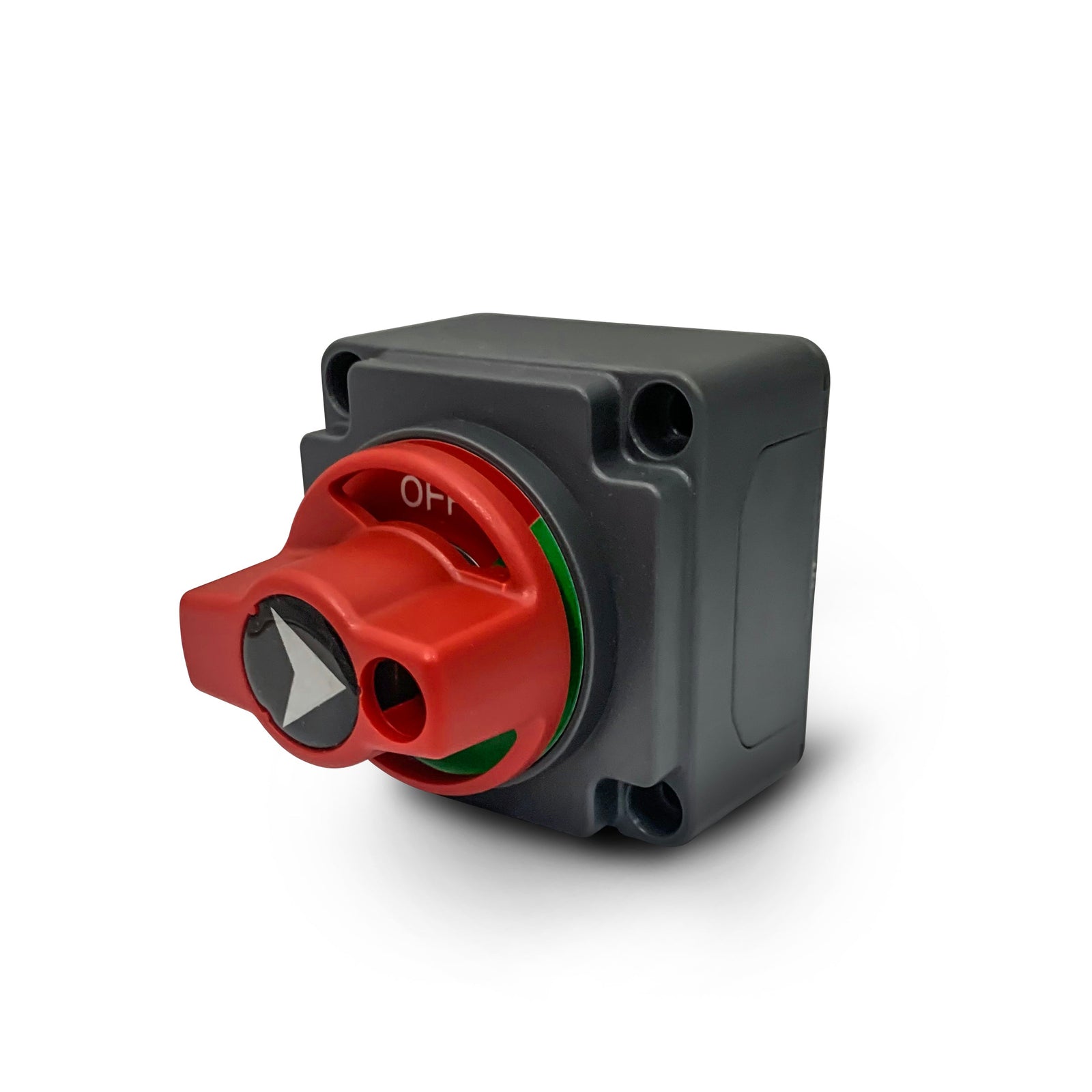

An isolation switch lets a high-current circuit be physically disconnected when it is not needed or when service work is being performed. Winches are a good example because the heavy positive cable may otherwise remain energized all the way to the front bumper. The isolator must be rated for the system voltage and the current the circuit can draw, including short-duration peaks where applicable. Install it where it is accessible but protected from accidental operation. In a trailer or marine setup, isolation can also reduce the chance of a damaged cable remaining live during storage. An isolator does not replace cable protection where a fuse or breaker is required.

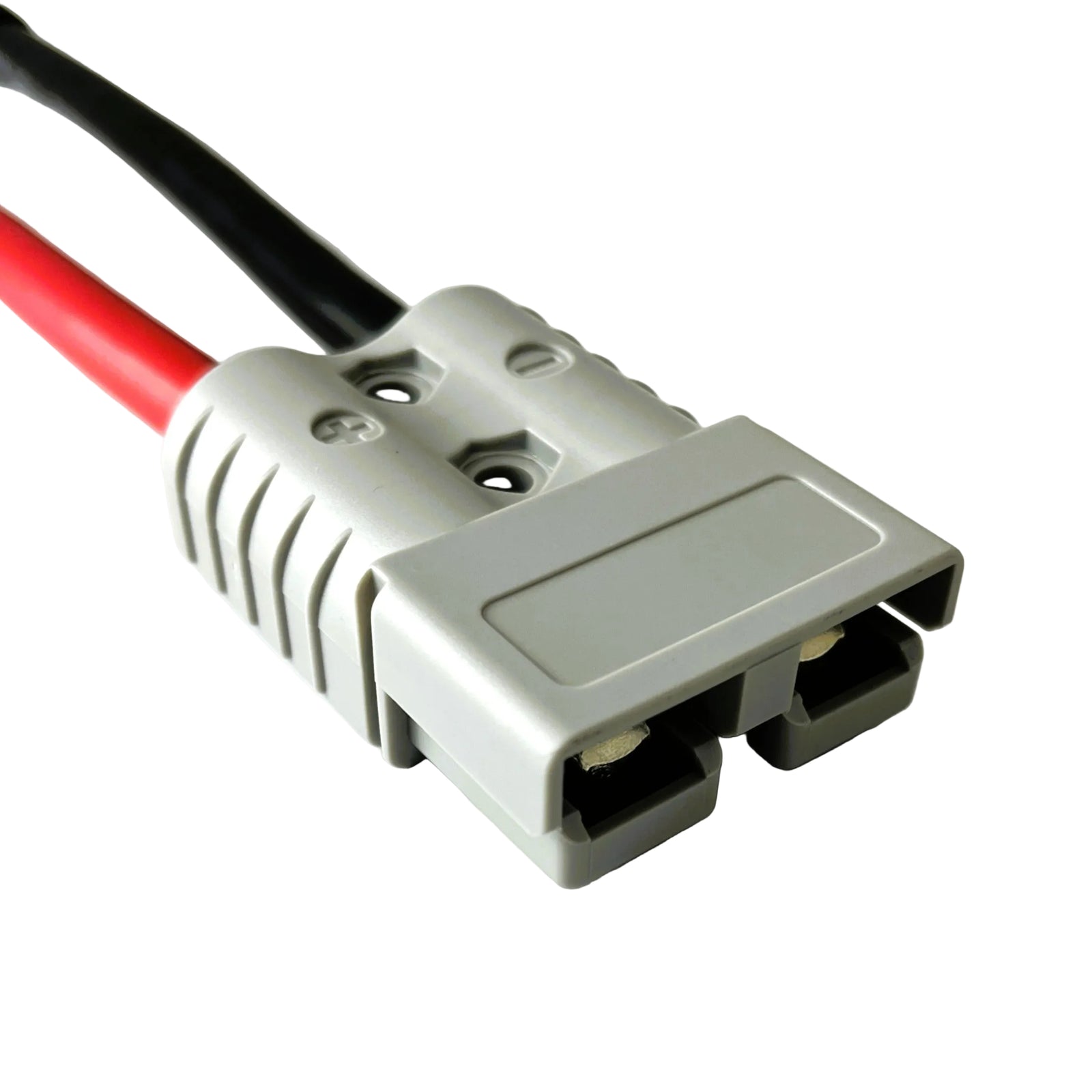

Heat usually comes from resistance at a joint. Poor crimps, loose fasteners, corroded contacts, undersized connectors, dirt, or damaged cable strands can create a small resistance that becomes very hot when high current flows. Replacing a melted connector without fixing the bad termination often leads to another failure. Check for discoloration, softened plastic, or heat traveling into the cable. Support heavy cables so vibration does not work the terminal loose. If a connector is noticeably hotter than the cable around it, measure voltage drop across that connection under load and correct the resistance before increasing fuse size or load.

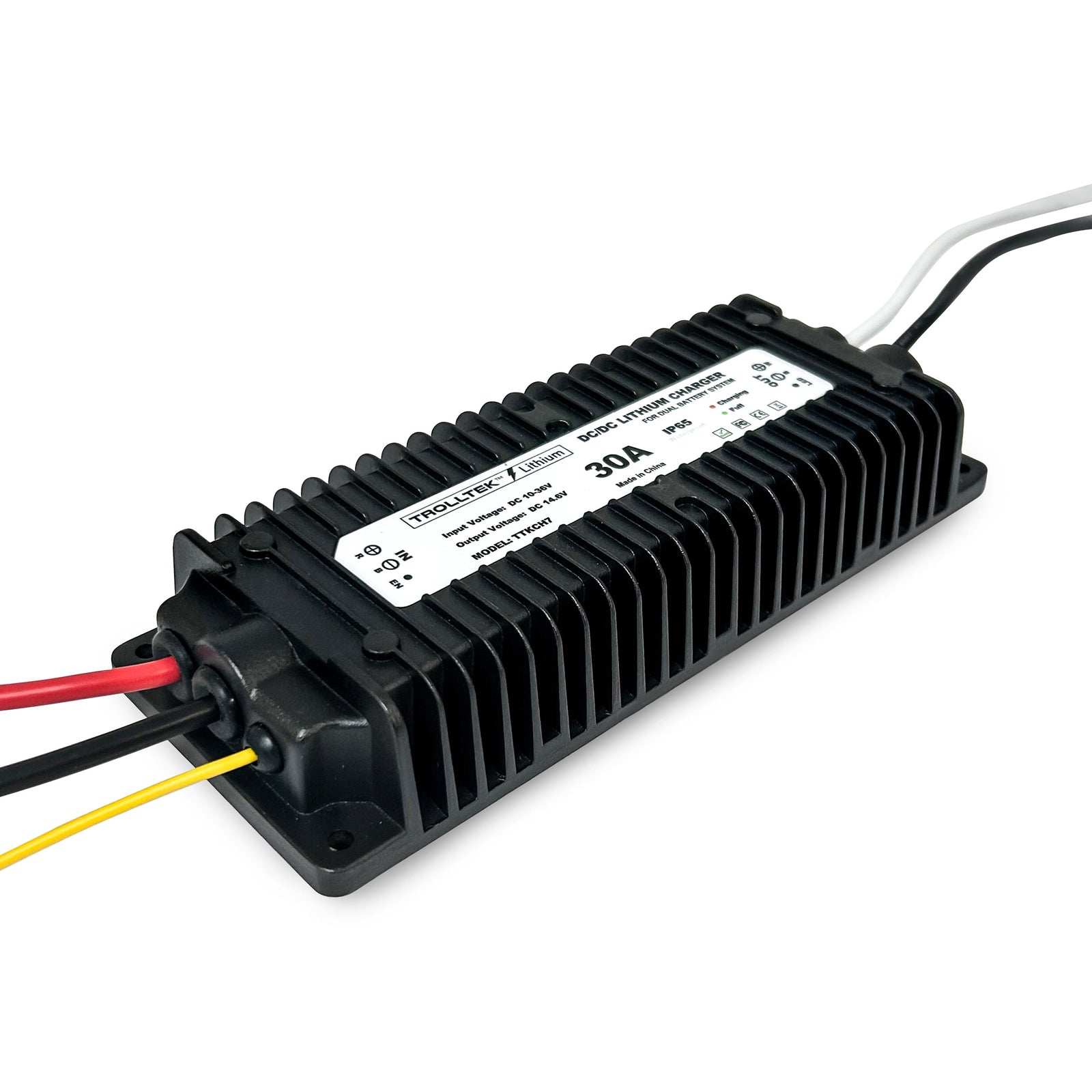

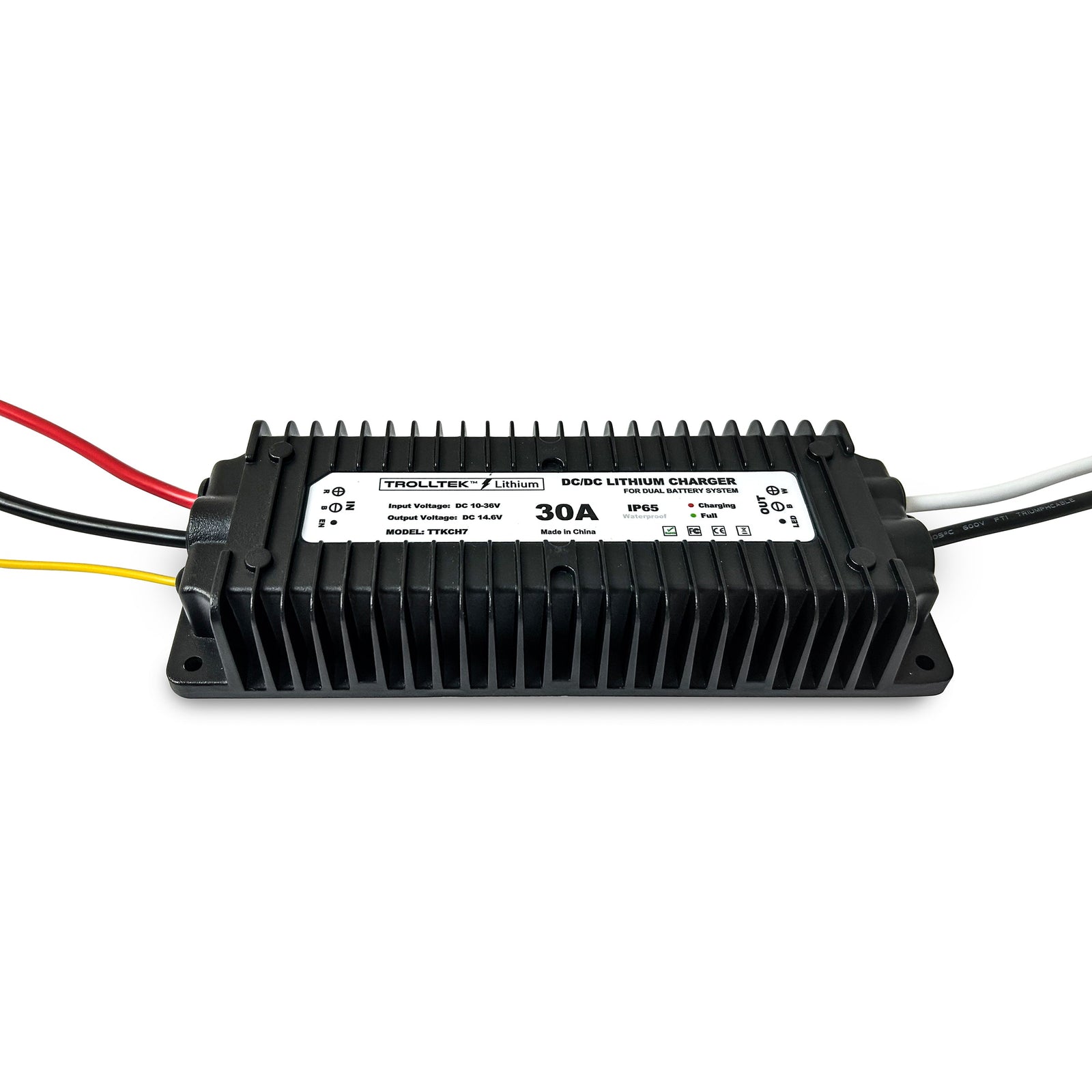

A DC/DC charger takes power from the vehicle starting system and applies a controlled charging profile to an auxiliary battery. It is particularly useful with LiFePO4 batteries and vehicles with smart alternators, where a simple battery-to-battery cable may not provide predictable charging. Choose charger current based on the battery's allowable charge rate and the alternator's spare capacity. Input and output cable both need correct sizing and protection. A programmable voltage-sensitive relay can be used in some installations to enable charging only when source voltage is suitable. A DC/DC charger should not be placed in the high-current winch circuit unless it is specifically designed to carry winch current, which normal chargers are not.
