Winch Spare Parts

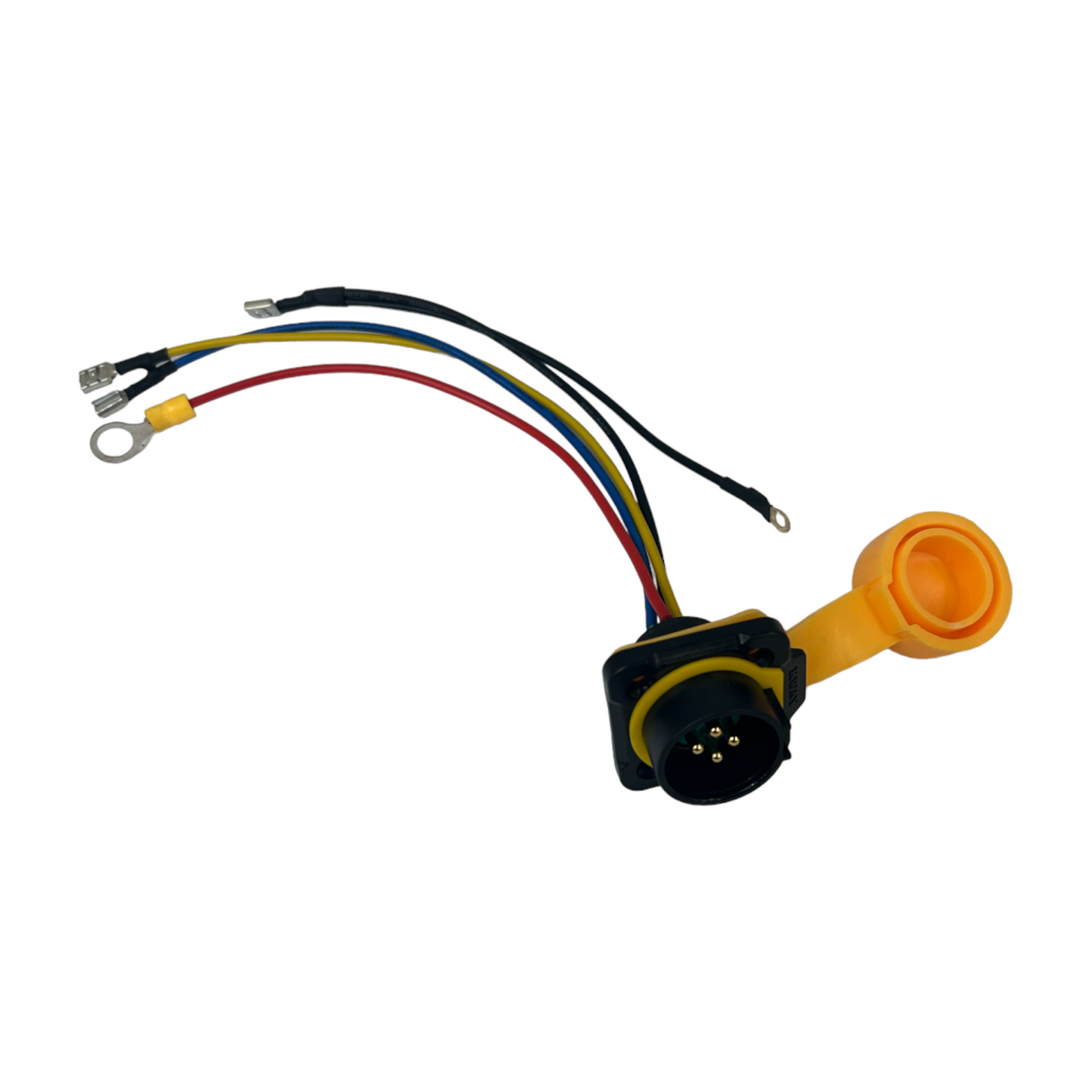

Start with the exact winch model and system voltage. The Mustang, Brumby, Colt, Steed, Stallion, Mule, ATV, Grunter, and tow-truck winches use different combinations of motors, gearboxes, brakes, and controls. A part that bolts on physically may still have the wrong power, shaft, gear ratio, or terminal arrangement. Photograph the winch label, motor terminals, control plug, and gearbox side before ordering. For older winches, include approximate purchase date and any visible part numbers. Voltage is critical: a 12V motor or contactor is not interchangeable with a 24V version just because the housing looks identical.

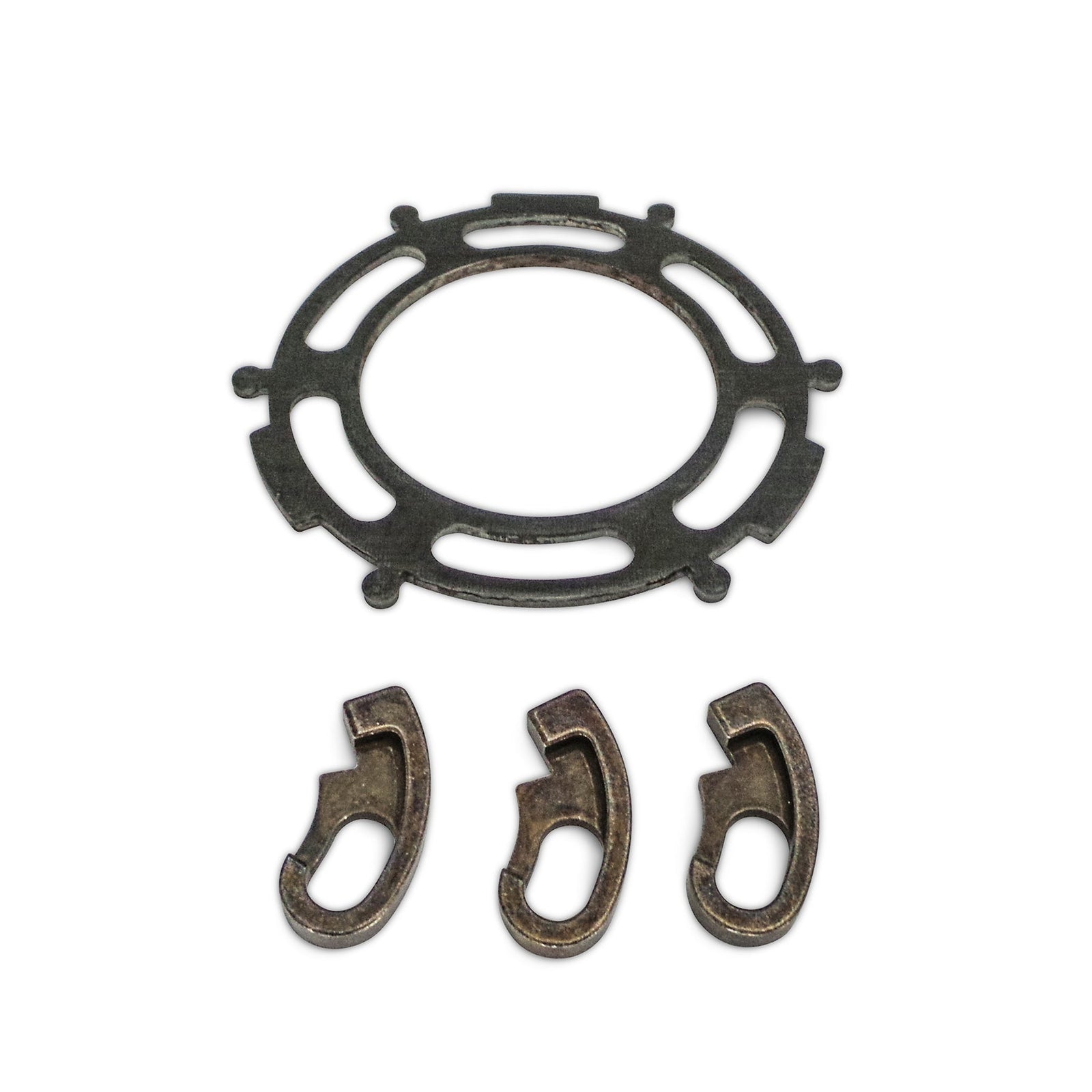

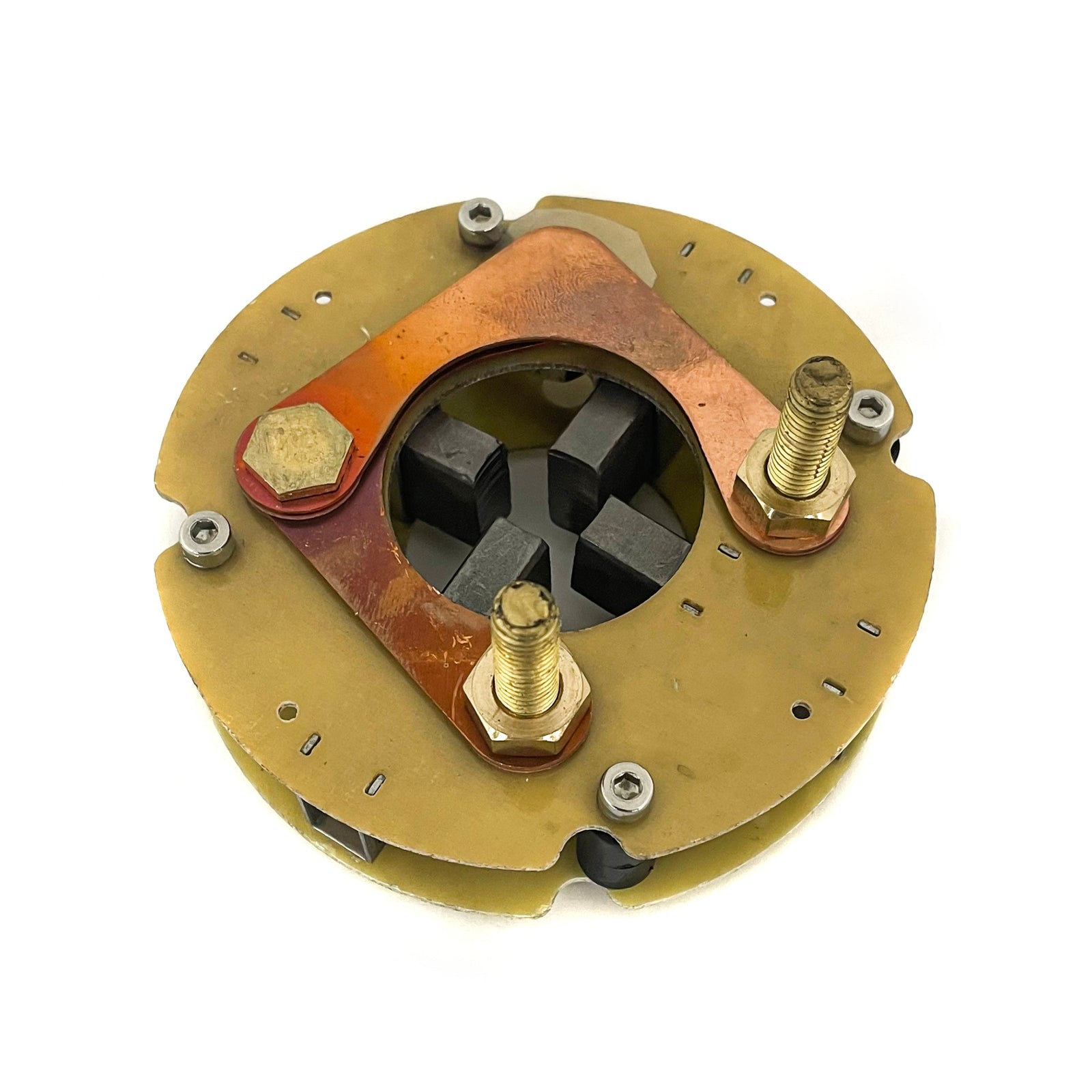

Check battery voltage and cable connections first, because supply problems can mimic both faults. If the solenoid clicks but the motor does not run, measure voltage at the motor while the control is pressed. Full battery voltage at the motor with no movement points toward a motor or internal brake problem. Little or no output voltage from the contactor points toward the solenoid, remote circuit, or control wiring. A winch that works in only one direction often has a contactor or control fault. Do not repeatedly bridge high-current terminals as an informal test; winch circuits can deliver hundreds of amps and can arc violently.

Inspect the fairlead every time the rope is changed. A gouged aluminum hawse can cut a brand-new synthetic rope, while seized or badly grooved rollers can damage steel cable. Replace synthetic rope for deep cuts, melted fibers, severe glazing, local thinning, or core damage. Replace steel cable for broken wires, kinks, crushing, corrosion, or flattened sections. If the old line failed because it was dragged over a damaged fairlead, fitting new rope without fixing the surface will simply repeat the problem. Clean the drum before installing the line and respool under controlled tension so the lower layers are tight and even.

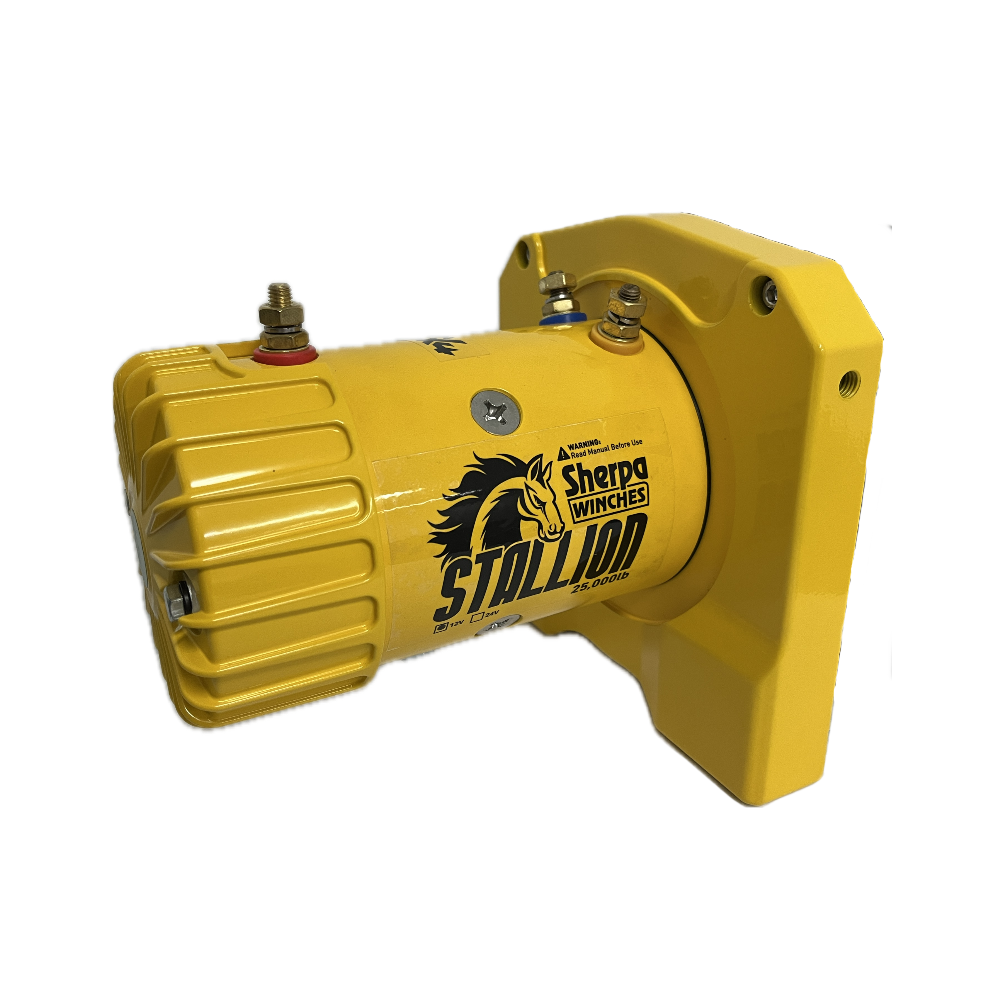

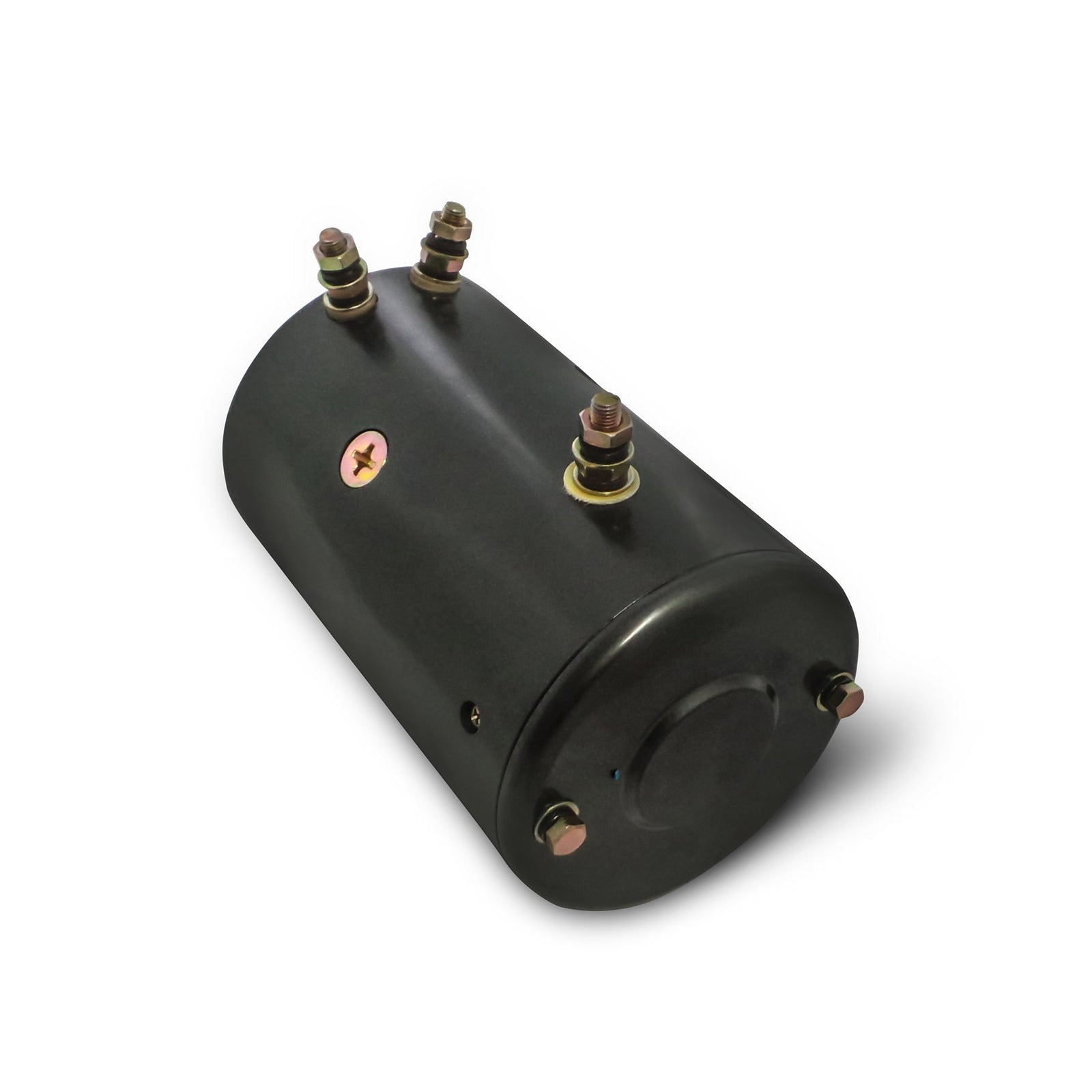

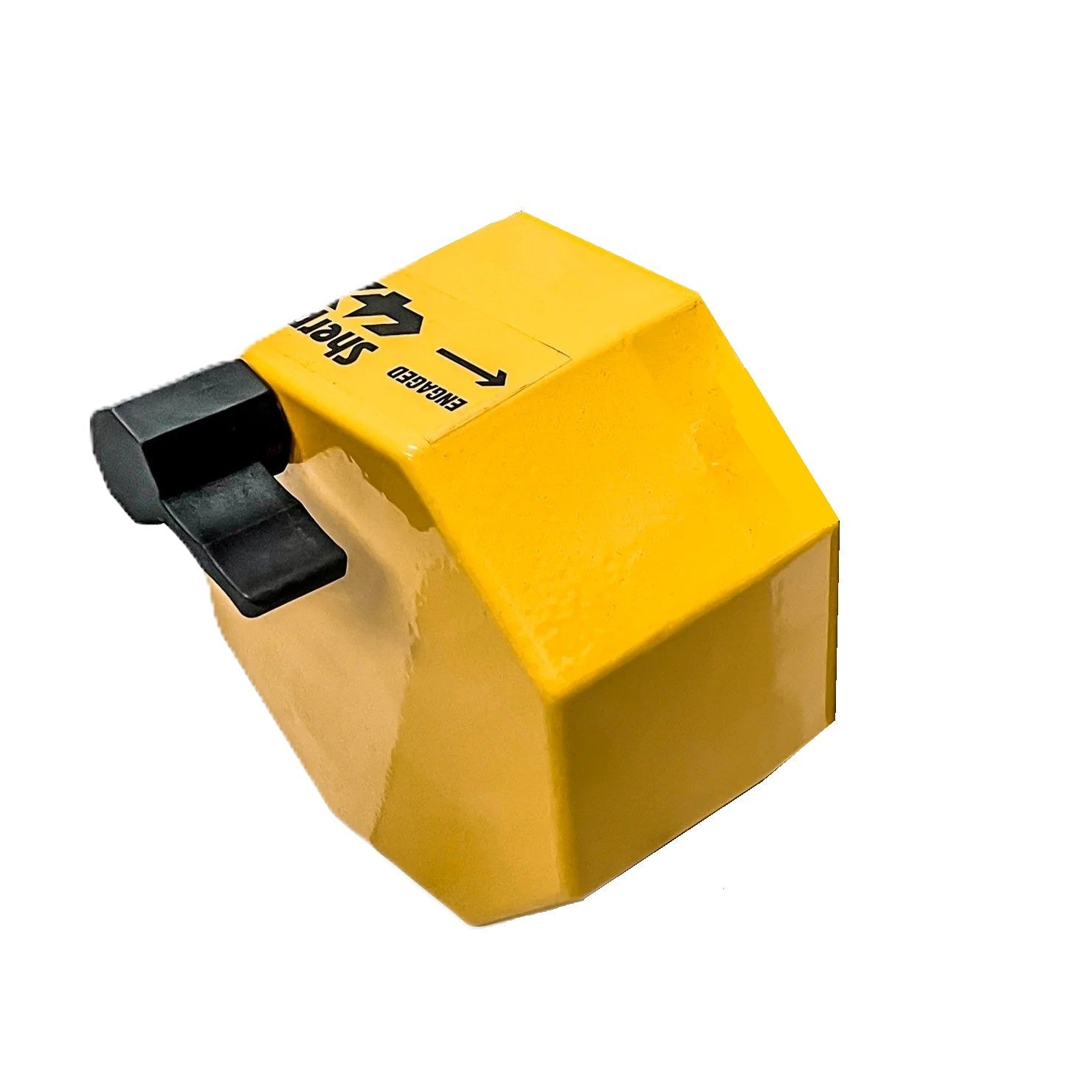

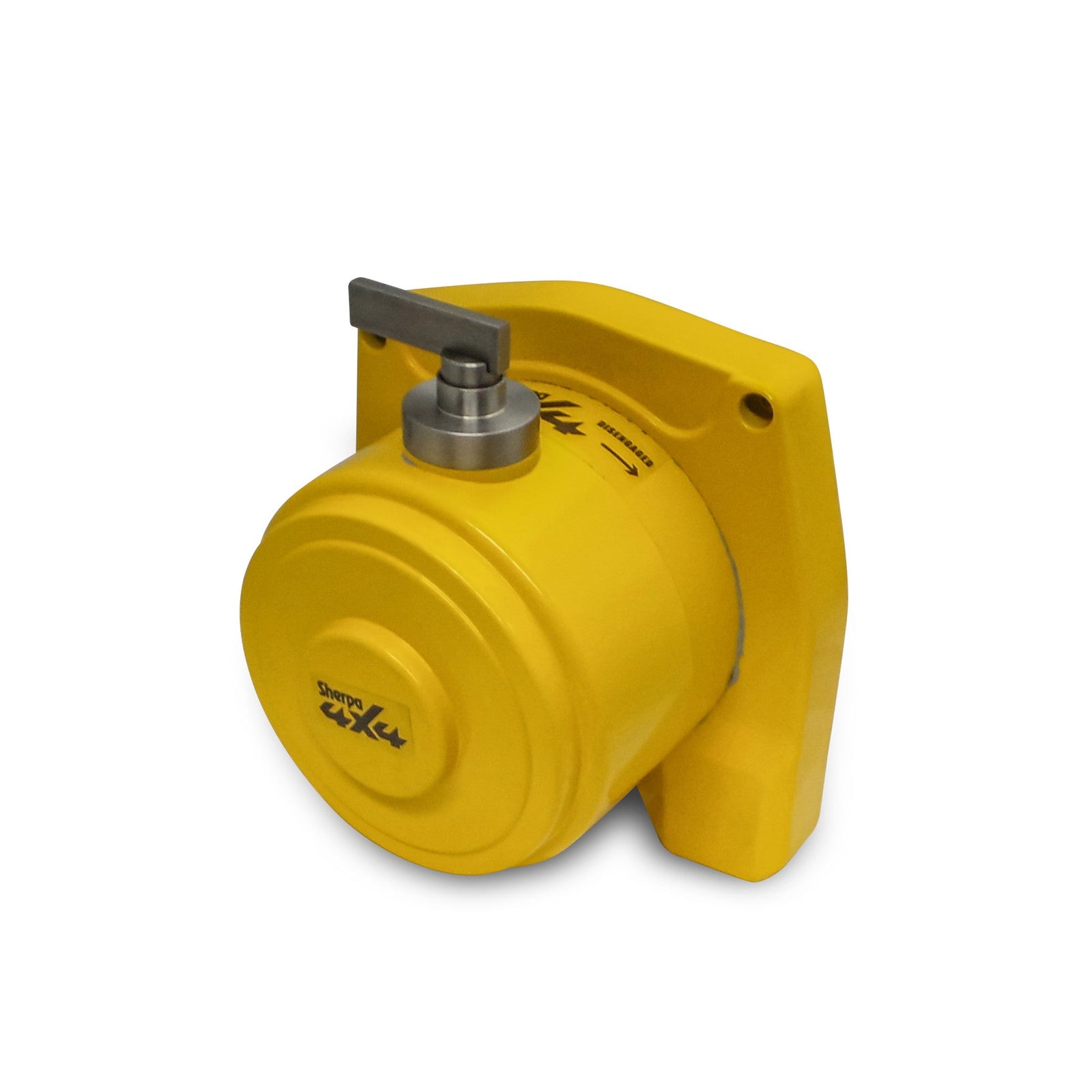

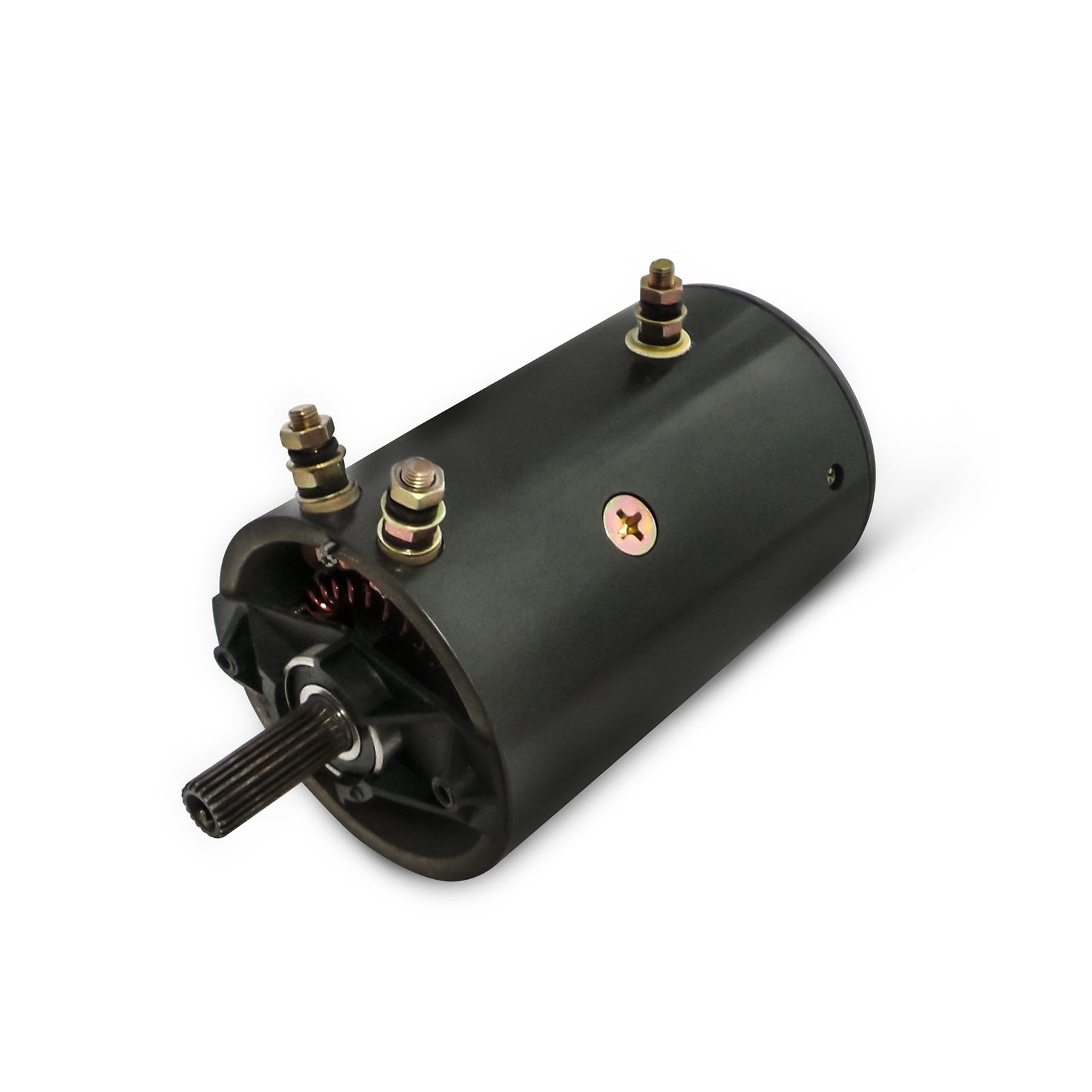

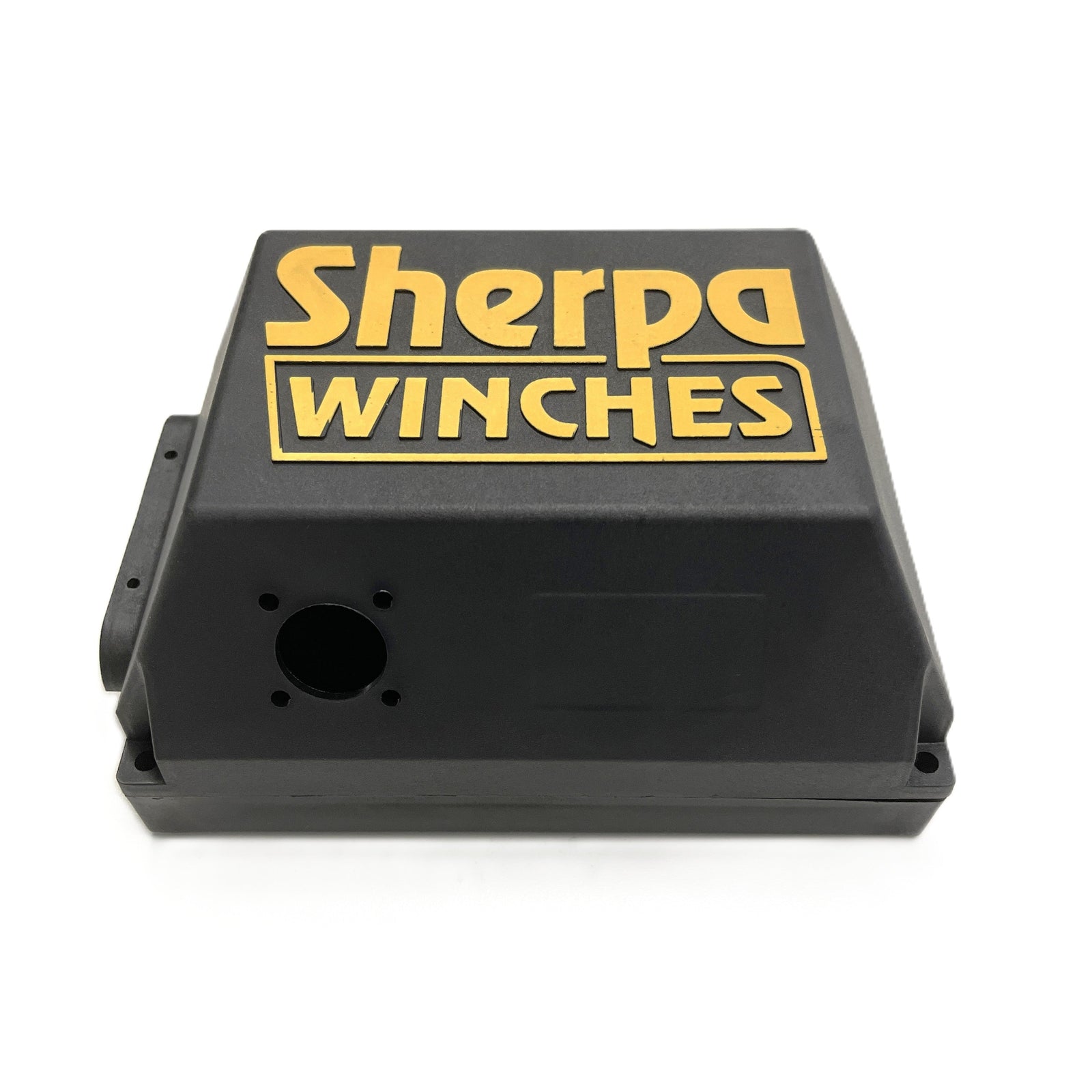

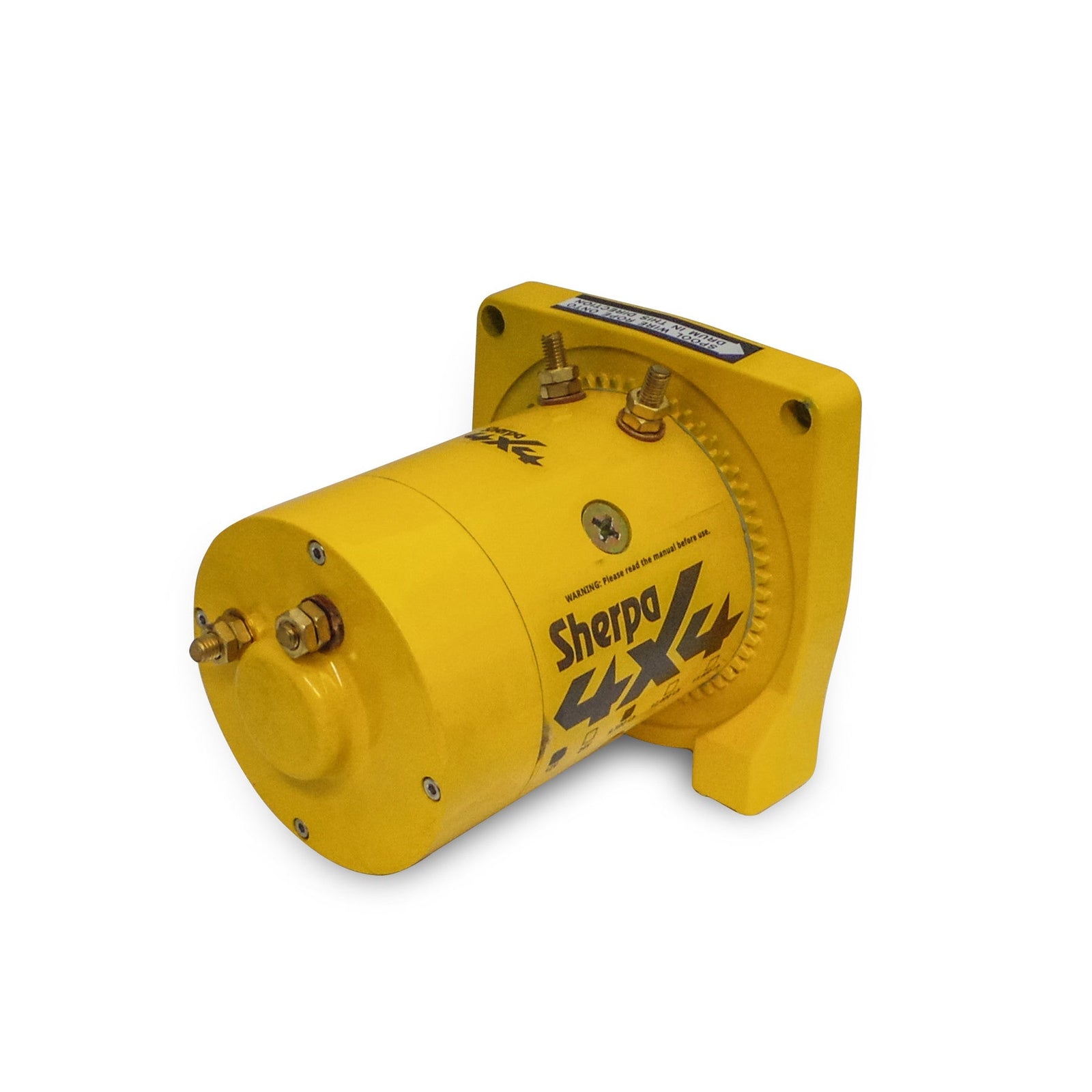

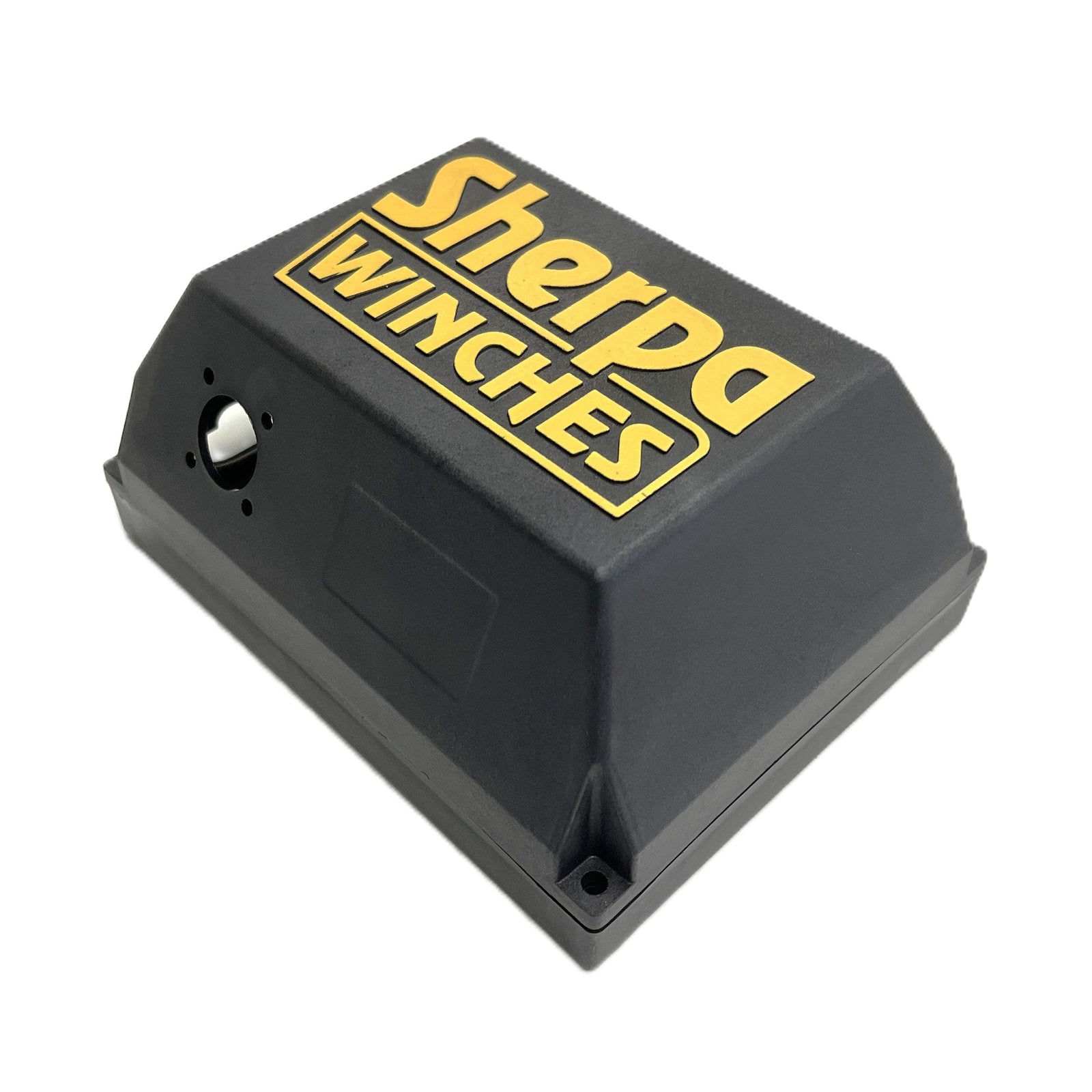

Only when the upgrade is specifically confirmed as compatible. A more powerful motor can draw more current than the original contactor, cables, or battery system were designed to carry, and it may apply more torque to a gearbox or brake that was engineered around the original motor. A motor swap should therefore be treated as a system modification rather than a bolt-on performance upgrade. If an older winch needs major work, inspect the gearbox, brake, drum, control box, and rope before deciding whether an upgrade is economical. Rebuilding around one worn major component can be false economy.

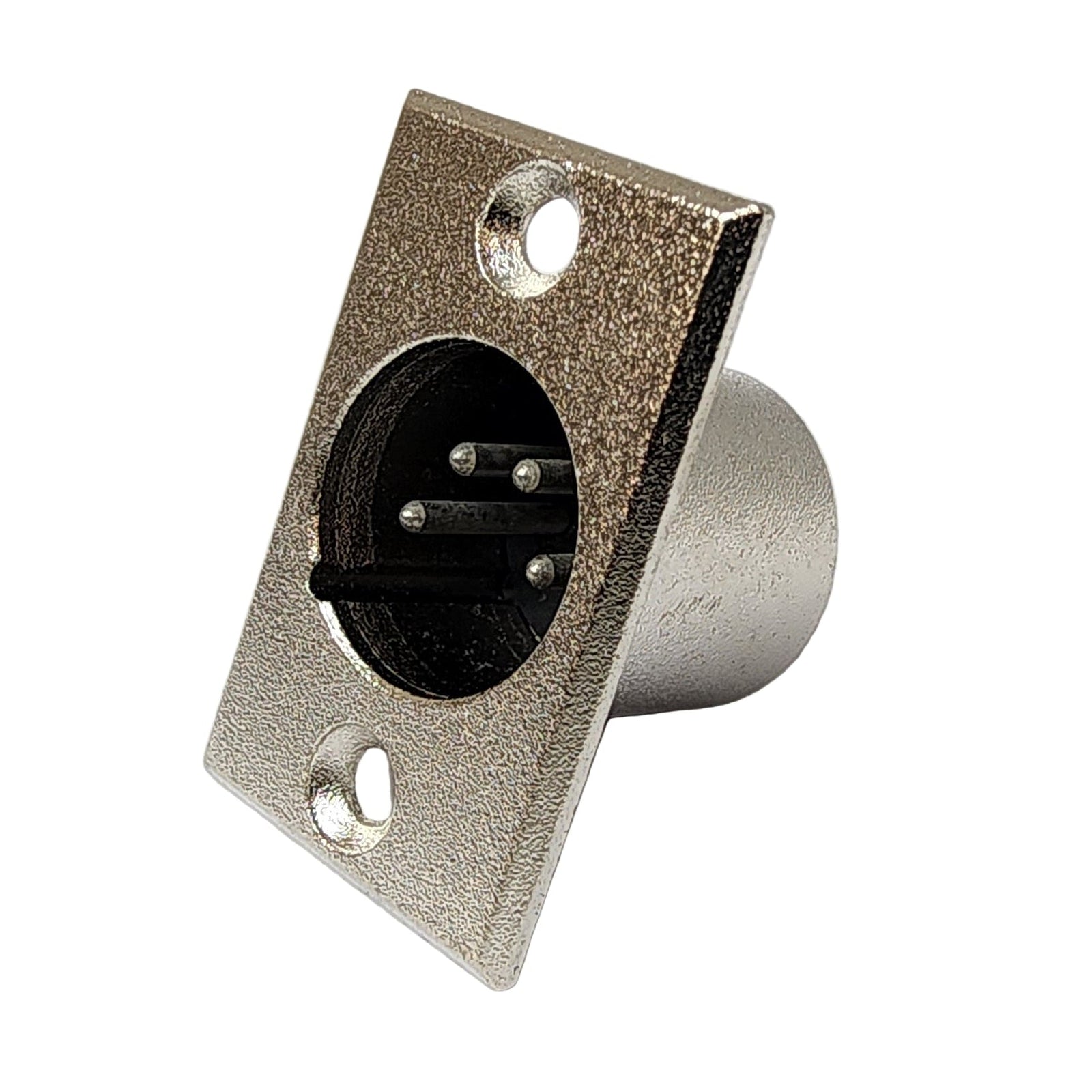

Carry the small items that can realistically be replaced in the field: the correct wired remote, a spare wireless remote battery, compatible fuses, basic terminal hardware, and perhaps a spare control plug if your winch uses one. A full motor or gearbox is heavy and usually not something you want to change on a trail. Recovery redundancy is often more useful, so carry a winch extension, pulley or recovery ring, soft shackles, and a second recovery method. Before a remote trip, test the winch under load, inspect the rope, and clean electrical connections. Preventive maintenance is more valuable than carrying parts for a failure that could have been found in the driveway.
