Tow Truck Winches

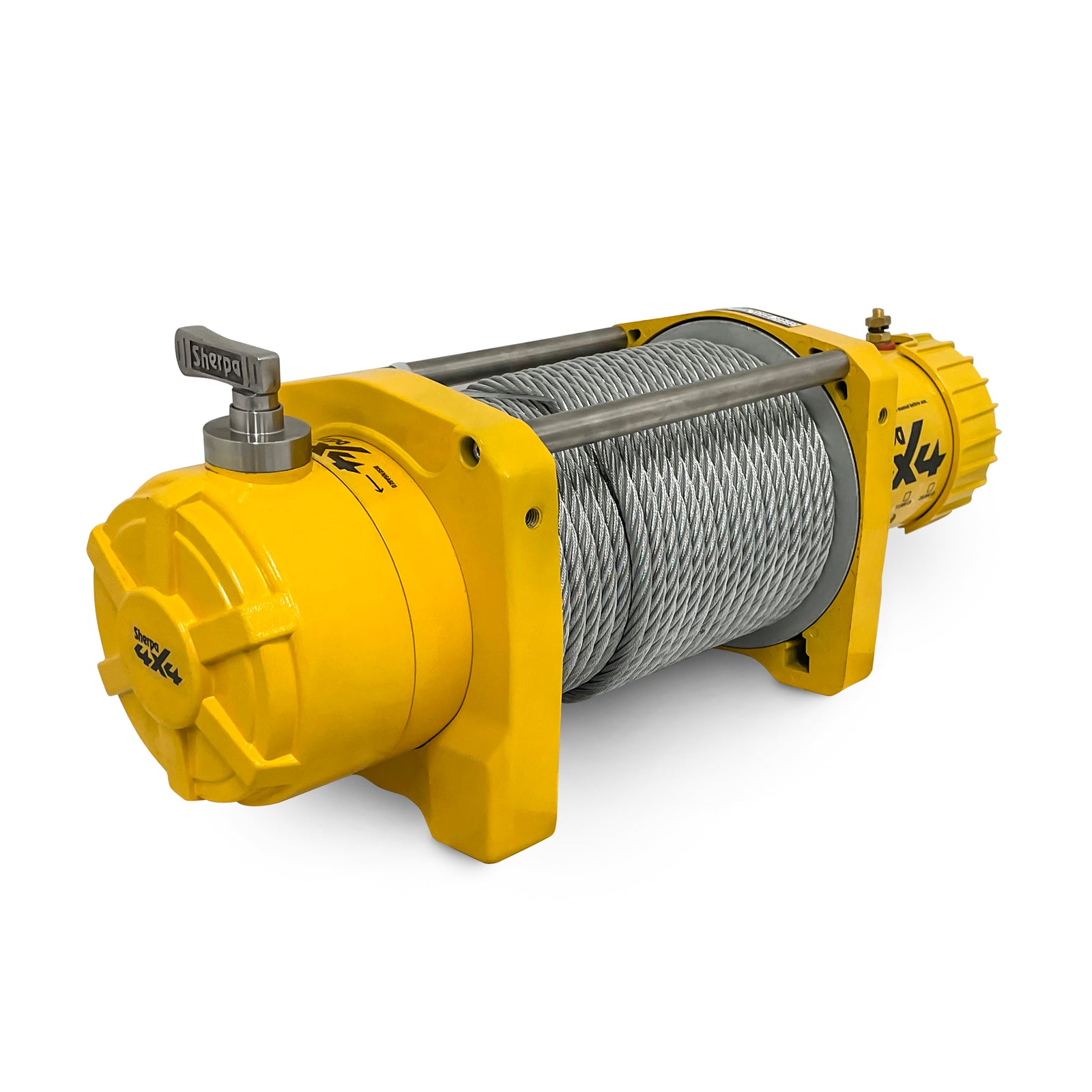

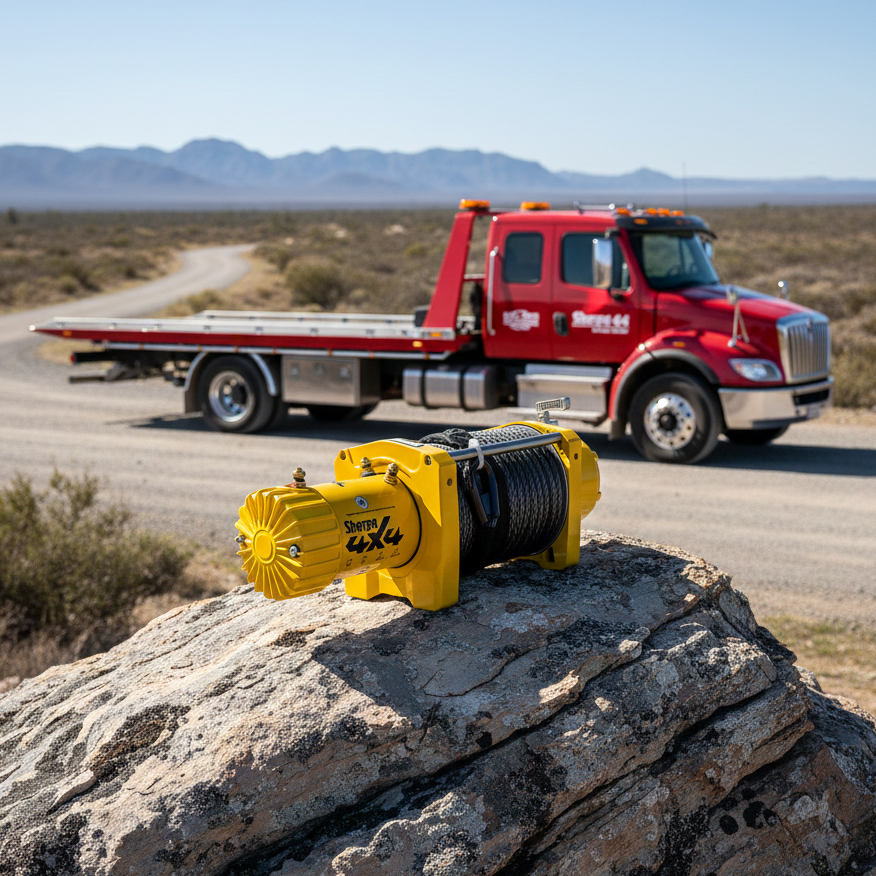

A tow-truck winch is expected to pull vehicles onto decks repeatedly and often needs more rope length, more durable controls, and a commercial-duty mounting structure. Sherpa's tow-truck winch is rated at 20,000 lb and is intended for vehicle loading and recovery work rather than occasional trail use. A commercial installation must account for the heaviest vehicle normally loaded, deck angle, side pulls, rope length, and daily duty cycle. Long cable runs from truck batteries also make voltage drop important. The winch, frame mount, fairlead, electrical system, and operator controls should be treated as one working system rather than installing a large winch on a light cradle and assuming the rating transfers.

Synthetic rope is lighter and easier to handle around disabled vehicles, and it has much less mass if the line fails. Steel cable tolerates abrasion, heat, and rough contact well and remains common in commercial towing. The best choice depends on operating environment and how consistently the line is inspected. Synthetic rope should be kept away from sharp chassis edges and hot exhaust components. Steel cable should be replaced if it develops broken wires, crushing, severe kinks, or corrosion. The fairlead must suit the line type and the entire rope should be respun under controlled tension periodically. Commercial operators benefit from a documented inspection routine instead of waiting until damage is obvious.

Uneven spooling is usually caused by the line approaching the drum at a poor angle. Loading a vehicle far off-center can force the rope hard against one flange, burying lower layers and damaging the line. Reposition the truck or use a correctly rated redirection pulley so the line approaches the drum more squarely. Periodically unwind and respool the complete line under moderate tension so crossed or loose layers are corrected. Check the fairlead and drum for bends or damaged rollers as well. Continuing to winch with a pile on one side can crush synthetic rope or steel cable and can create enough side force to damage the drum or mount.

Start with the winch's maximum current demand, truck system voltage, and total cable length. Commercial winches can draw very high current, so battery capacity, alternator output, cable gauge, isolation, and connection quality are critical. Rear-mounted battery banks or long frame runs can create significant voltage drop if the conductors are undersized. A 24V truck system can reduce current for a given power level compared with 12V, but only if the winch, solenoid, controls, and batteries are all configured for 24V. Measure voltage at the winch during a loaded pull when troubleshooting. Warm connectors, discolored lugs, or a large voltage difference between the battery and winch indicate resistance that needs to be corrected.

Frequent use justifies frequent inspection. Check the rope or cable, hook or closed link, fairlead, drum flanges, brake, motor terminals, solenoid/control box, and mounting hardware. Look for heat discoloration at cable joints and listen for gearbox noises that change under load. Synthetic rope should be cleaned if grit is embedded; steel cable should be checked along its full length for broken wires and crushing. Test free-spool, brake holding, wired remote, and wireless controls before a shift rather than during a live recovery. Maintain service records so recurring electrical, brake, or gearbox problems can be recognized before they cause a roadside failure.
