Sherpa 4x4 Universal Winch Mounting Plate

Universal Winch Mounting Plate

• See the drawings below for dimensions of the Regular and Large Base versions. Use the Regular Base with Sherpa 28m rope or cable winches. For our 30m and 45m range of winches the Large Base will be required.

  CAD Drawing: SUWMPRB - Sherpa Winch Mounting Plate (Regular Base)

  CAD Drawing: SUWMPLB - Sherpa Winch Mounting Plate (Large Base)

  PLEASE READ: We cannot advise if the winch plate will suit your vehicle or bar. These require customisation to fit. See the drawings for dimensions and take measurements of your vehicle to determine suitability.

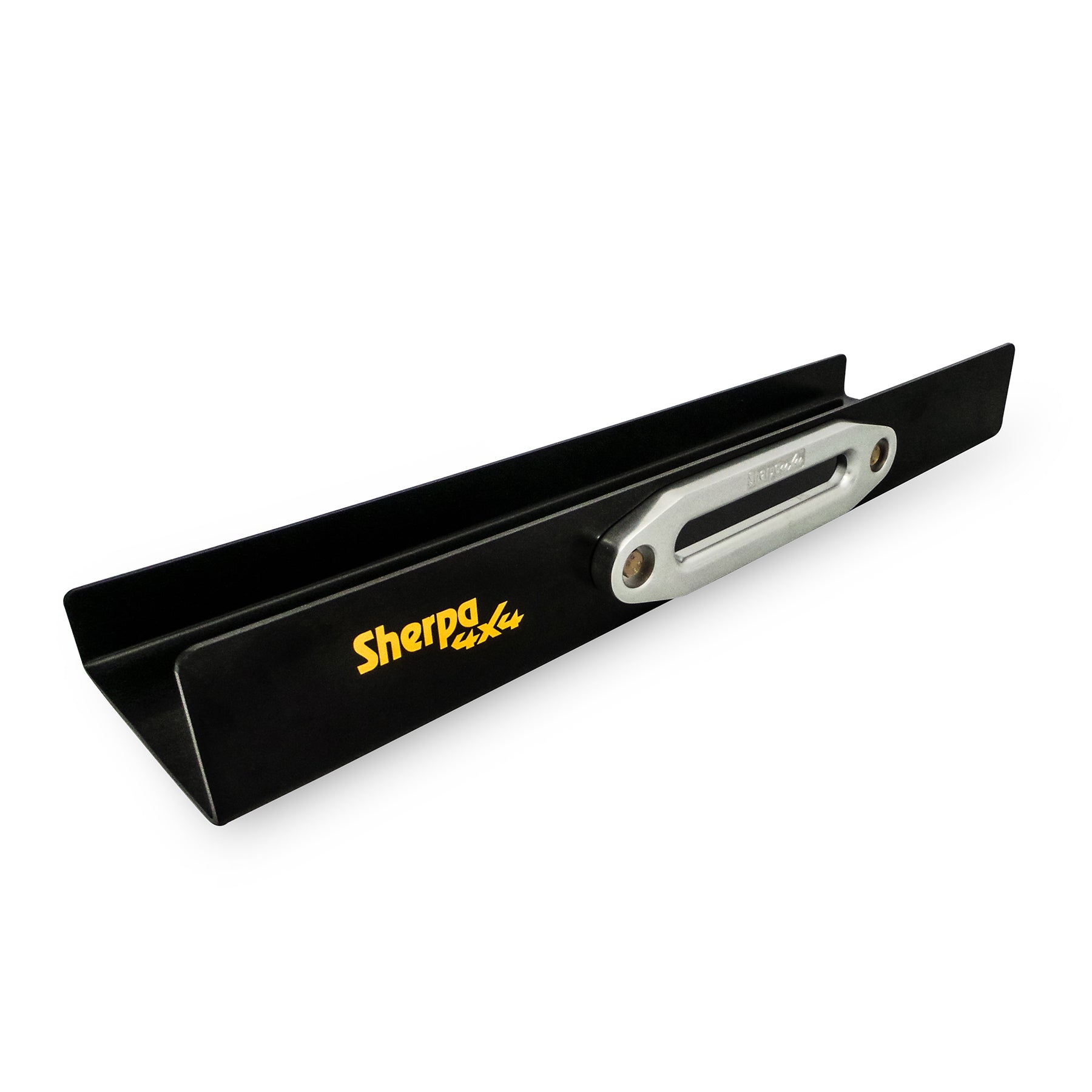

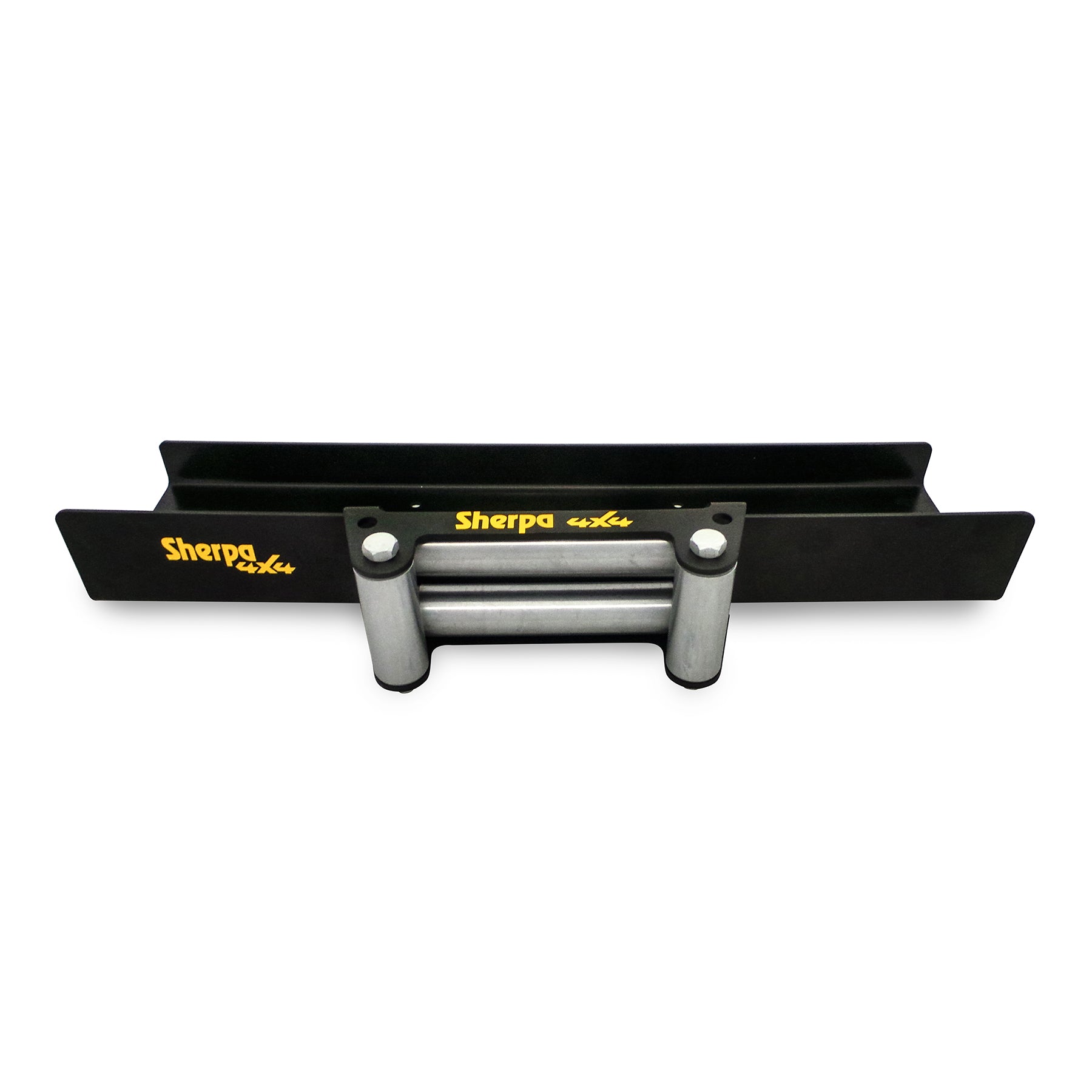

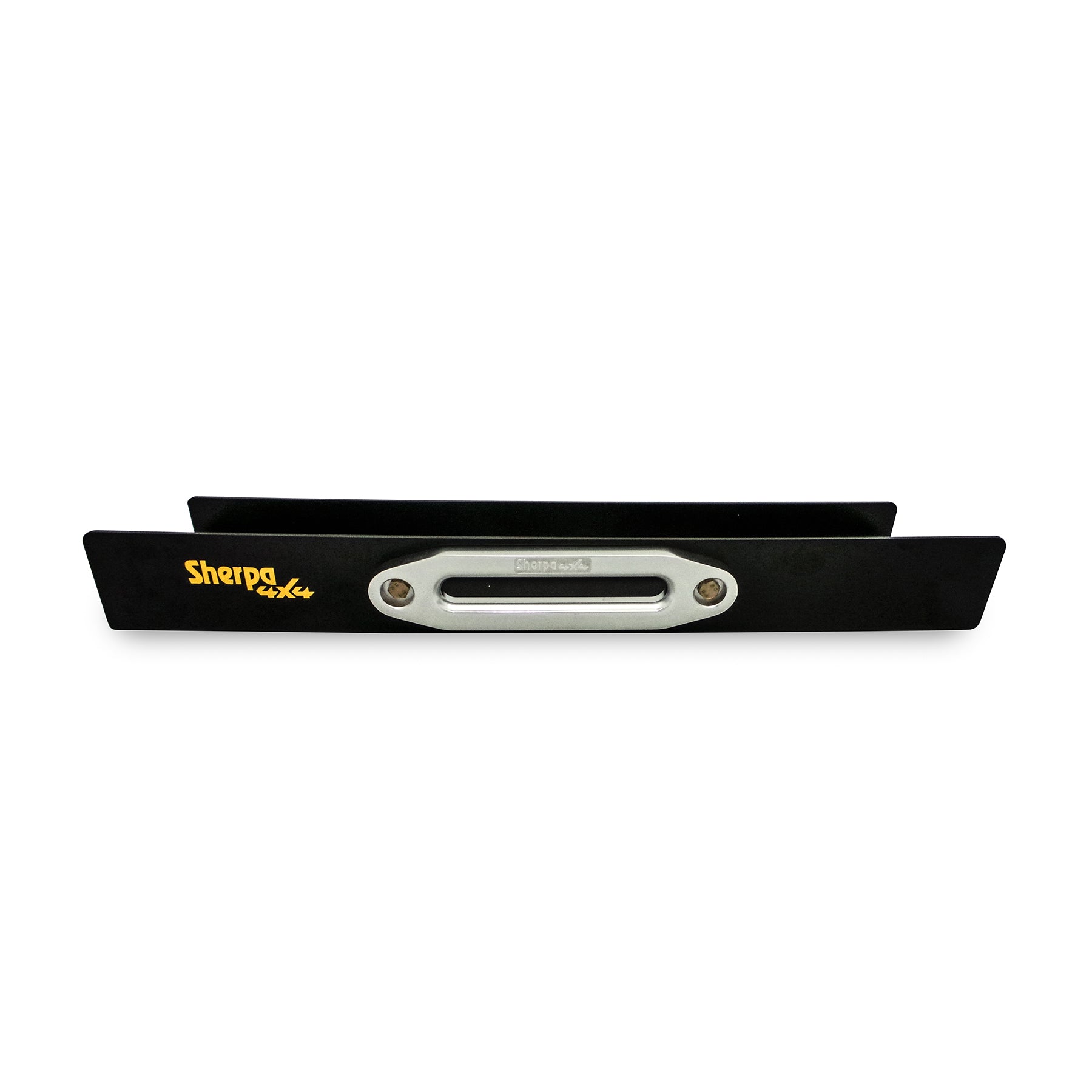

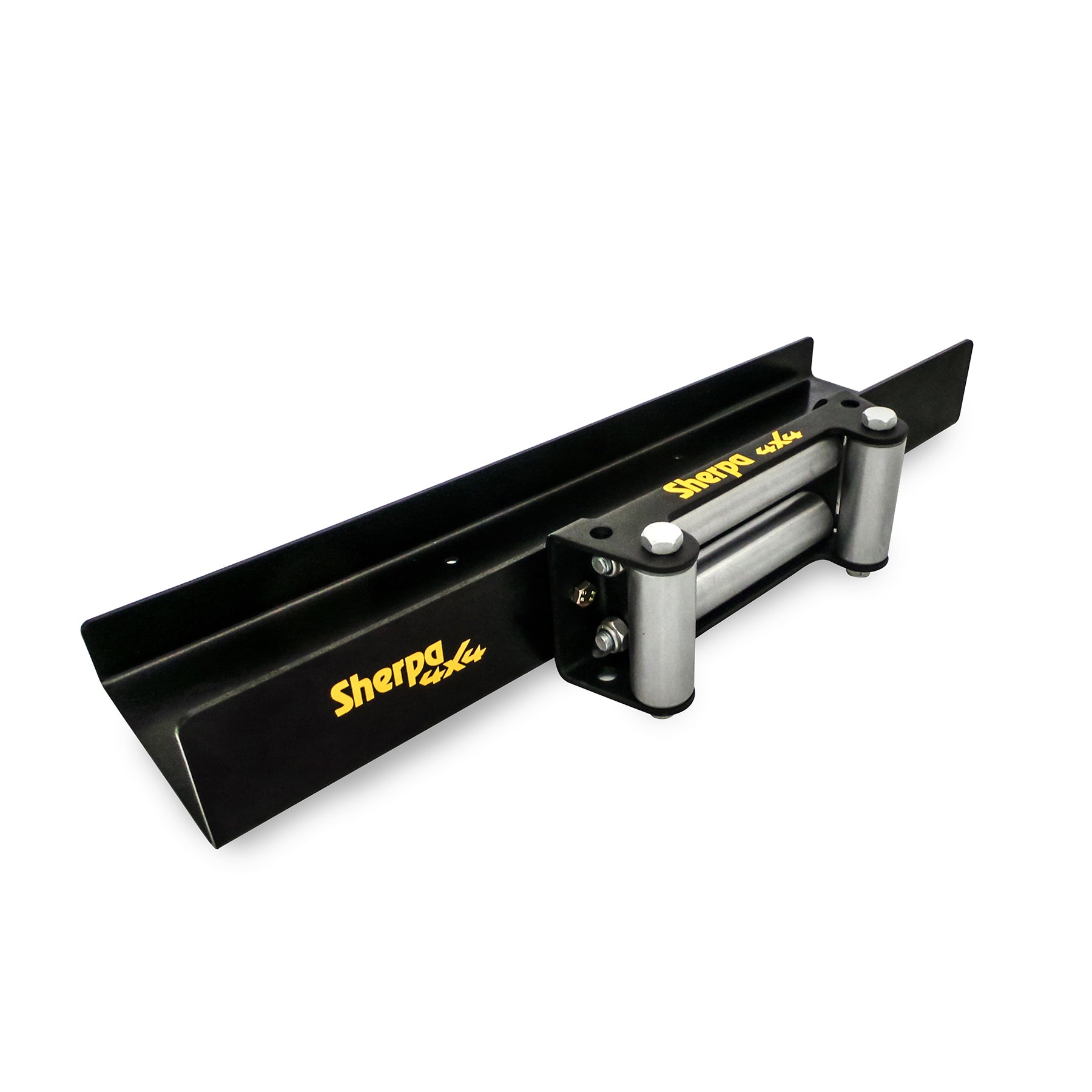

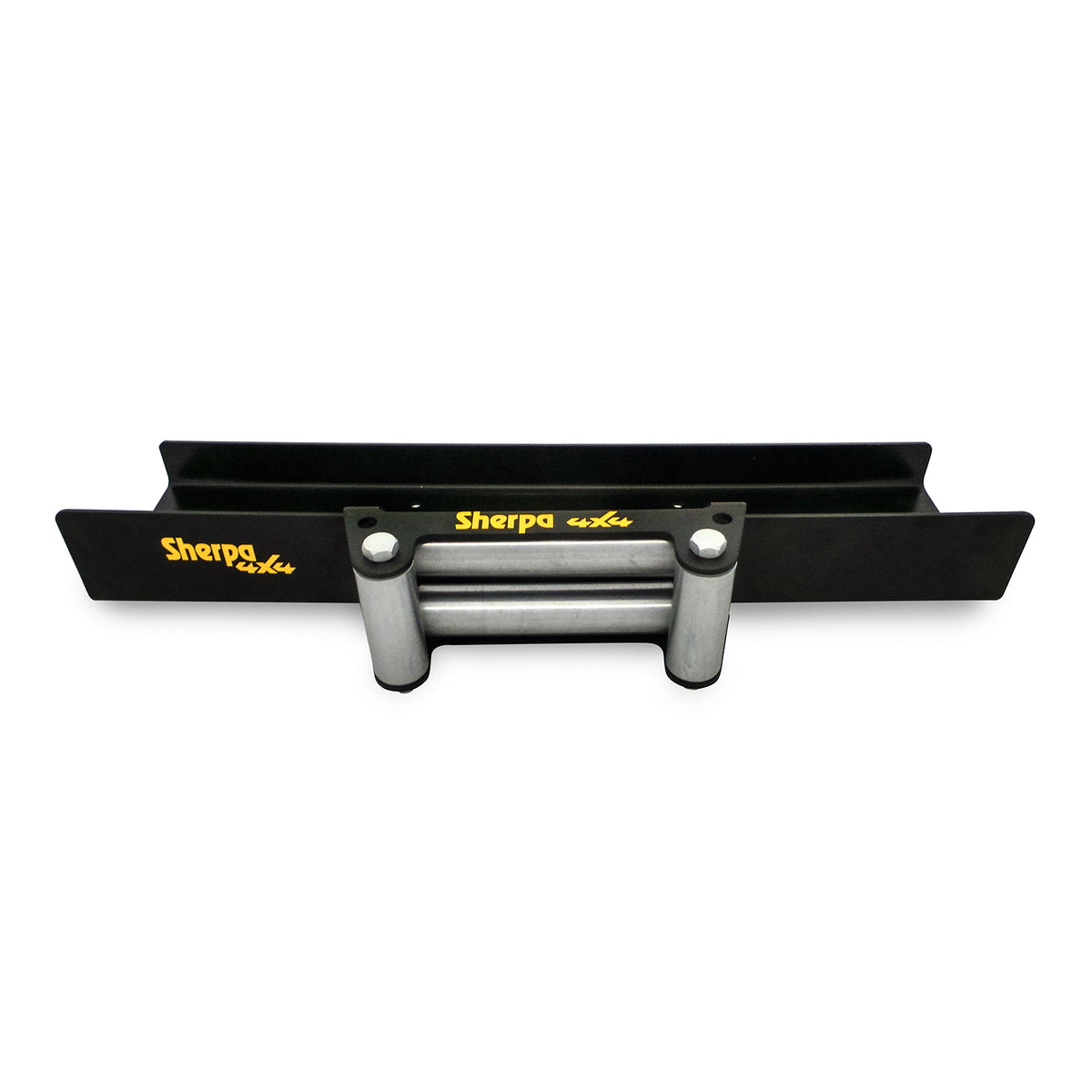

  Supplied as the winch bracket only. Winch roller fairlead and hawse are shown in the pictures for demonstration purposes.

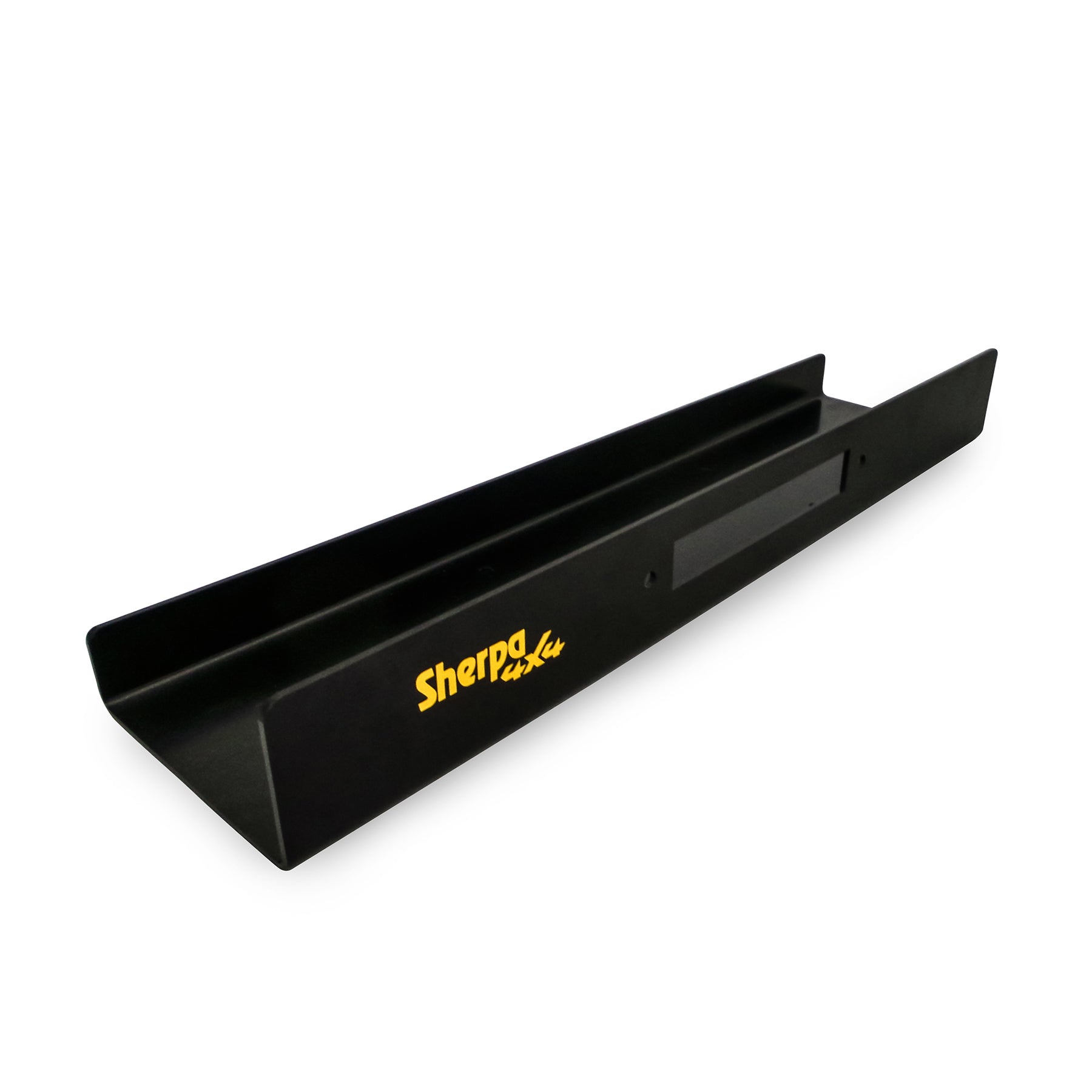

  • Universal winch bracket makes fitting winches possible on vehicles without bullbars or without winch bars.
  • Heavy duty construction to withstand the load of winches up to 19,000Lbs.
  • Includes cut out and standard mounting holes for aluminium hawses or roller fairleads.
  • Available with the option of regular base or large sized base.
  • Ideal for rear mounted winches.
  • Also used on trucks, trailers, campers, custom built vehicles.
  • Long lasting black powder coat.
  • 4.5mm steel thickness.
  • 12 Month Warranty.

• CAD Drawing: SUWMPRB - Sherpa Winch Mounting Plate (Regular Base)

  CAD Drawing: SUWMPLB - Sherpa Winch Mounting Plate (Large Base)

  Weight:
  Regular Base - 8kg
  Large Base - 9kg



  Example of a customer's install:




  This customer has installed a Sherpa Stallion 25,000lb winch with a Large Base mounting plate. The plate has been trimmed to suit and bolted between the chassis rails. A hawse or fairlead is then to be fitted and the bumper replaced.
