Sherpa Air Compressor (BOX-AIR)

S12VPAP

PRICE INCLUDES FREE USA SHIPPING

Sherpa BOX AIR is compact yet heavy duty, simple to use, portable, 12V Air Compressor, designed to take with you when you go touring or up the beach for a weekend. Designed to generate compressed, oil free air, it’s perfect for a range of applications such as tyre inflation. Supplied in the heavy duty carry case is everything you need for your next off-road adventure.

  • Portable 12V Air Compressor Kit

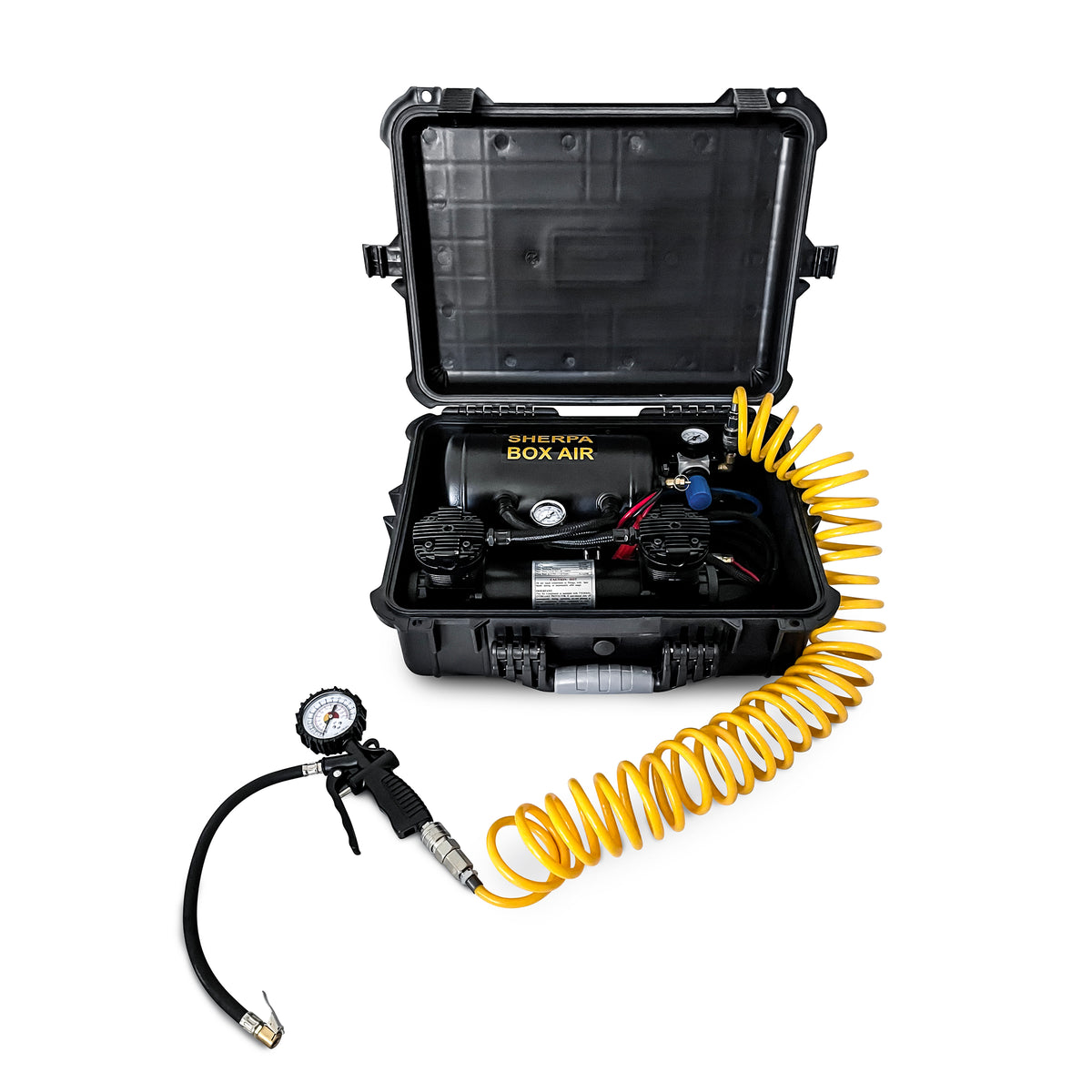

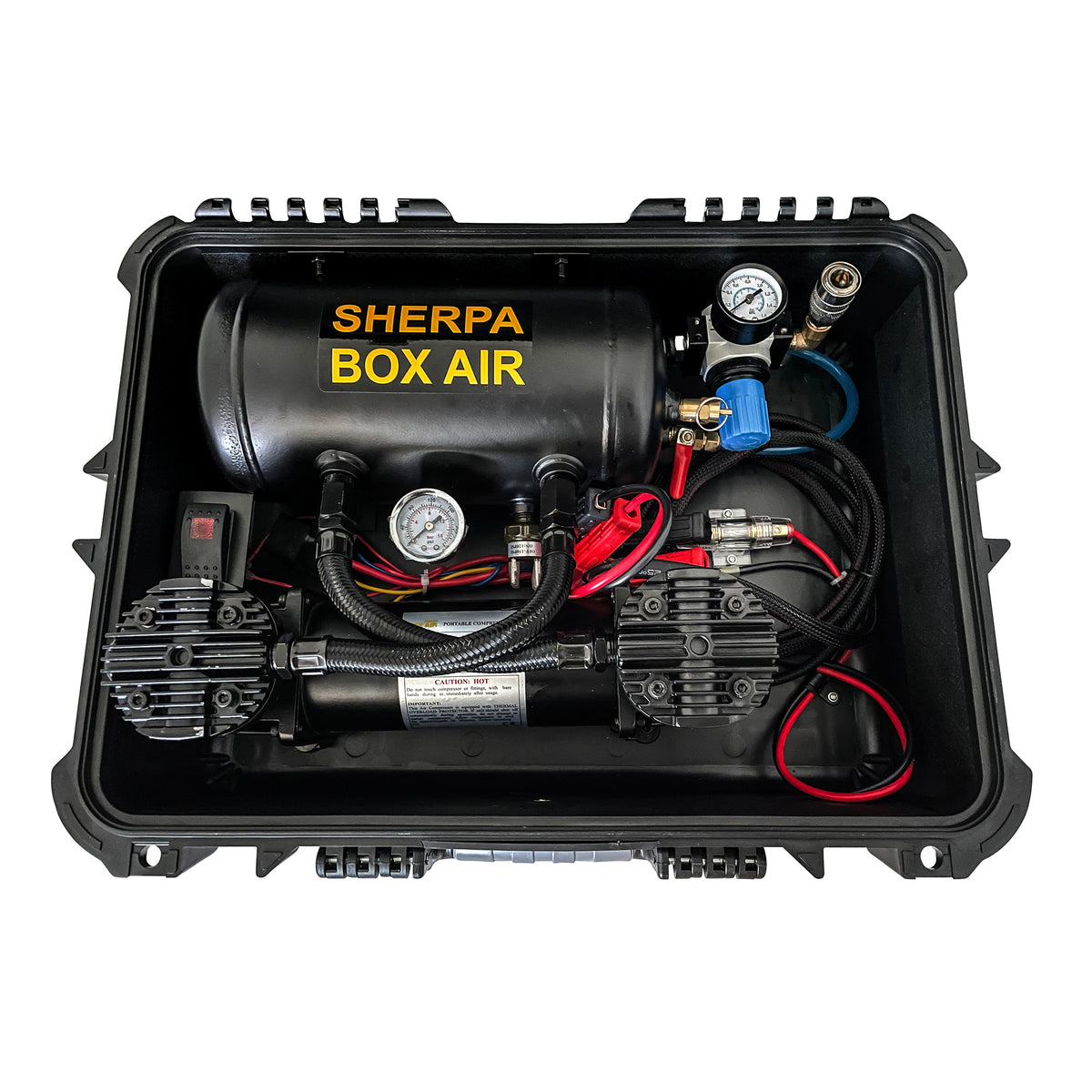

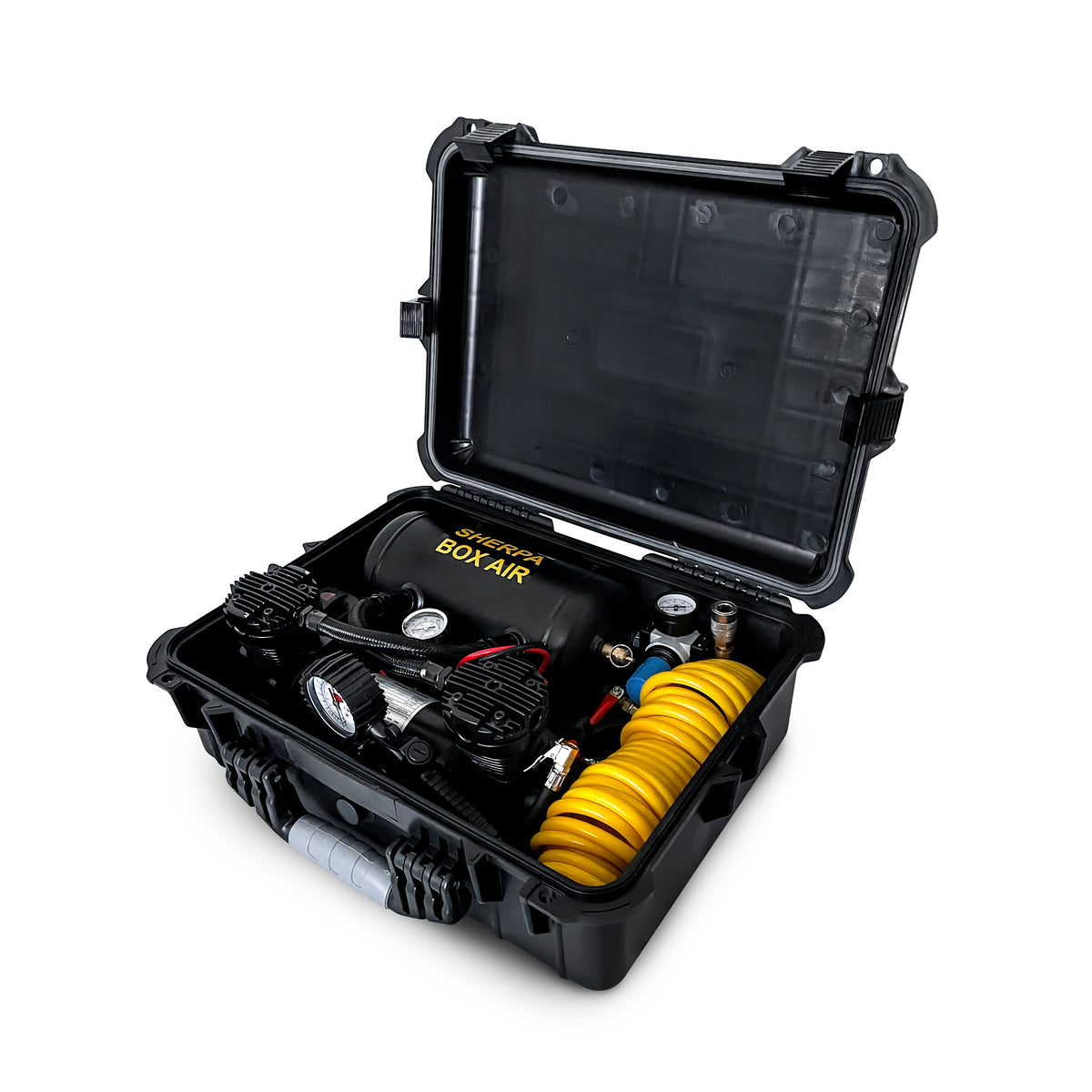

    Sherpa deliver a quality and powerful air compressor mounted inside a heavy duty carry case making it a portable and simple addition to your next off-road adventure. Included in the kit is an air receiver tank, pressure switch, air regulator as well as air line, gauge and power leads. This kit is ready to go and has everything you need to inflate your tyres when you go on your next adventure.

    Compressor Features:

    • Exceptional Sherpa quality
    • High volume air output from dual head compressor
    • Integrated air tank, pressure switch and safety relief valve
    • Convenient 12V power demand
    • Fast tyre inflation with 150 PSI tank air
    Build Quality and Performance - Sherpa BOX AIR

    When reliability and performance is key, only the highest quality components can be used and this is exactly what the BOX AIR encompasses. The powerful dual head compressor is designed to reach pressures up to 300 PSI which is far more than most users would ever require. Derating the compressor to 150 PSI means it's working well below its maximum design capacity and will last. Beware of cheap knock off units running plastic substandard components that simply aren't robust in extreme conditions. Sherpa use the best components to deliver the greatest performance and reliability.

    The Sherpa BOX AIR performs, thanks to the dual head air compressor and air flows are further improved by the incorporation of a 3.8L air receiver tank. The unit runs an automated pressure switch which controls the pressure in the tank to between 120 PSI and 150 PSI. Having this reservoir of pressurised air improves tyre inflation times as the compressor is left to run from start to finish and continues to store compressed air as you move between tyres and other activities.

    BOX AIR Design

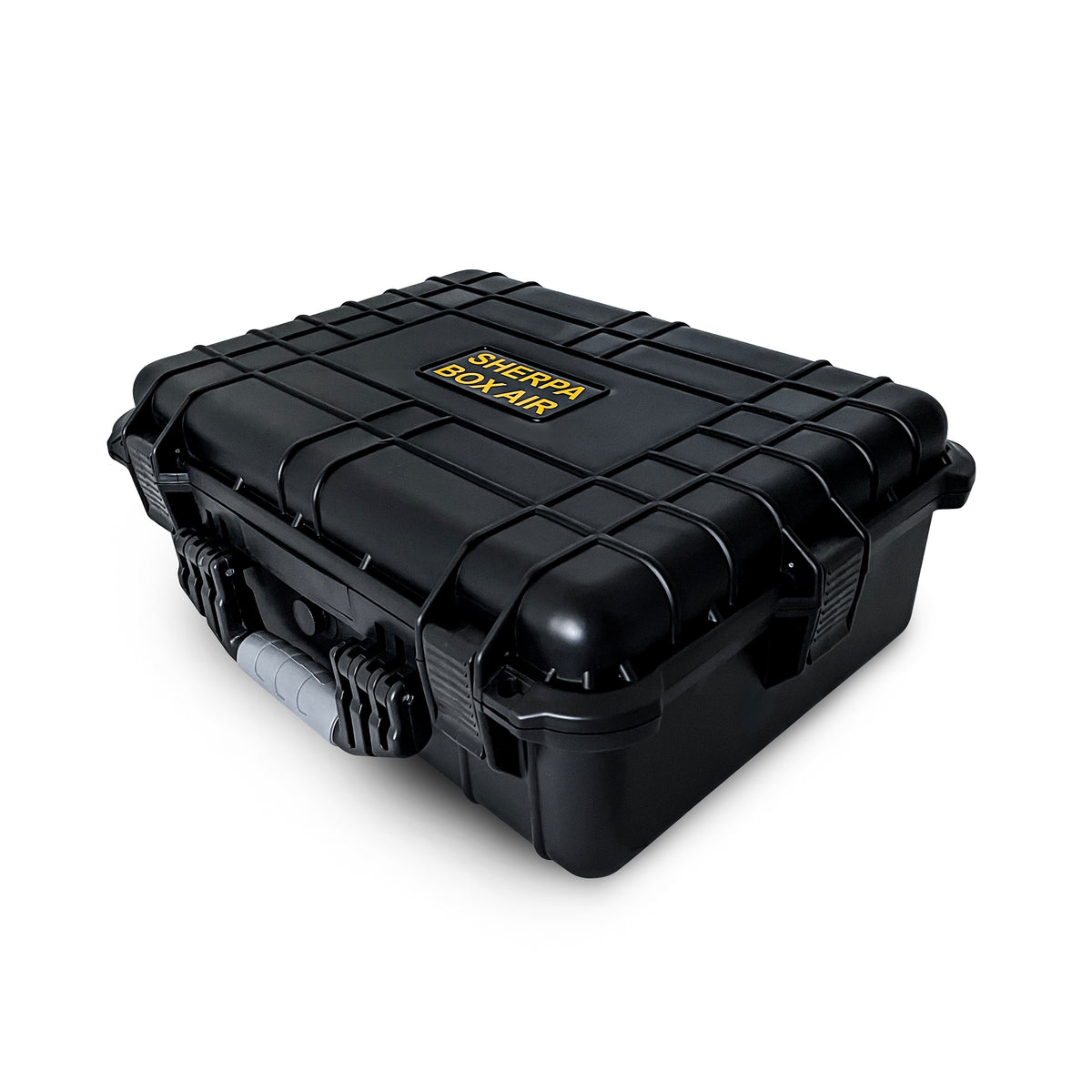

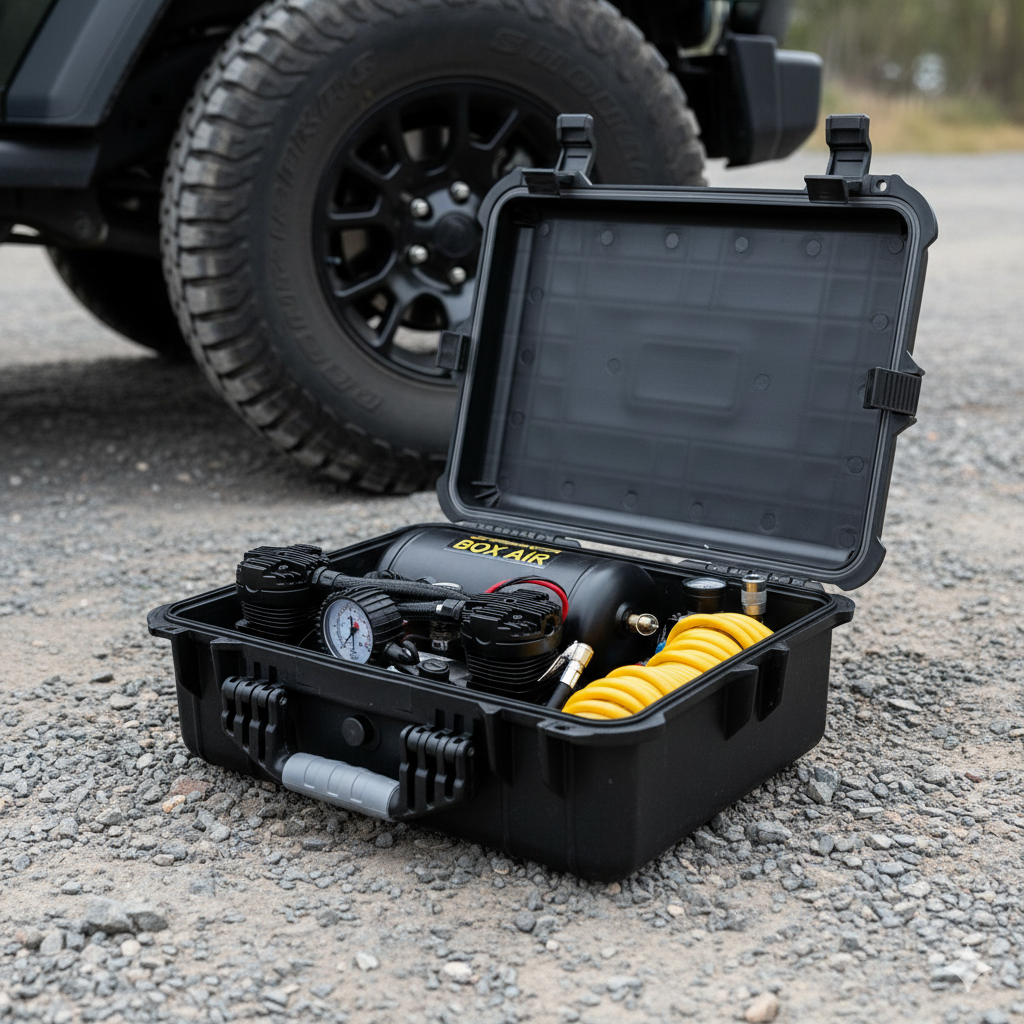

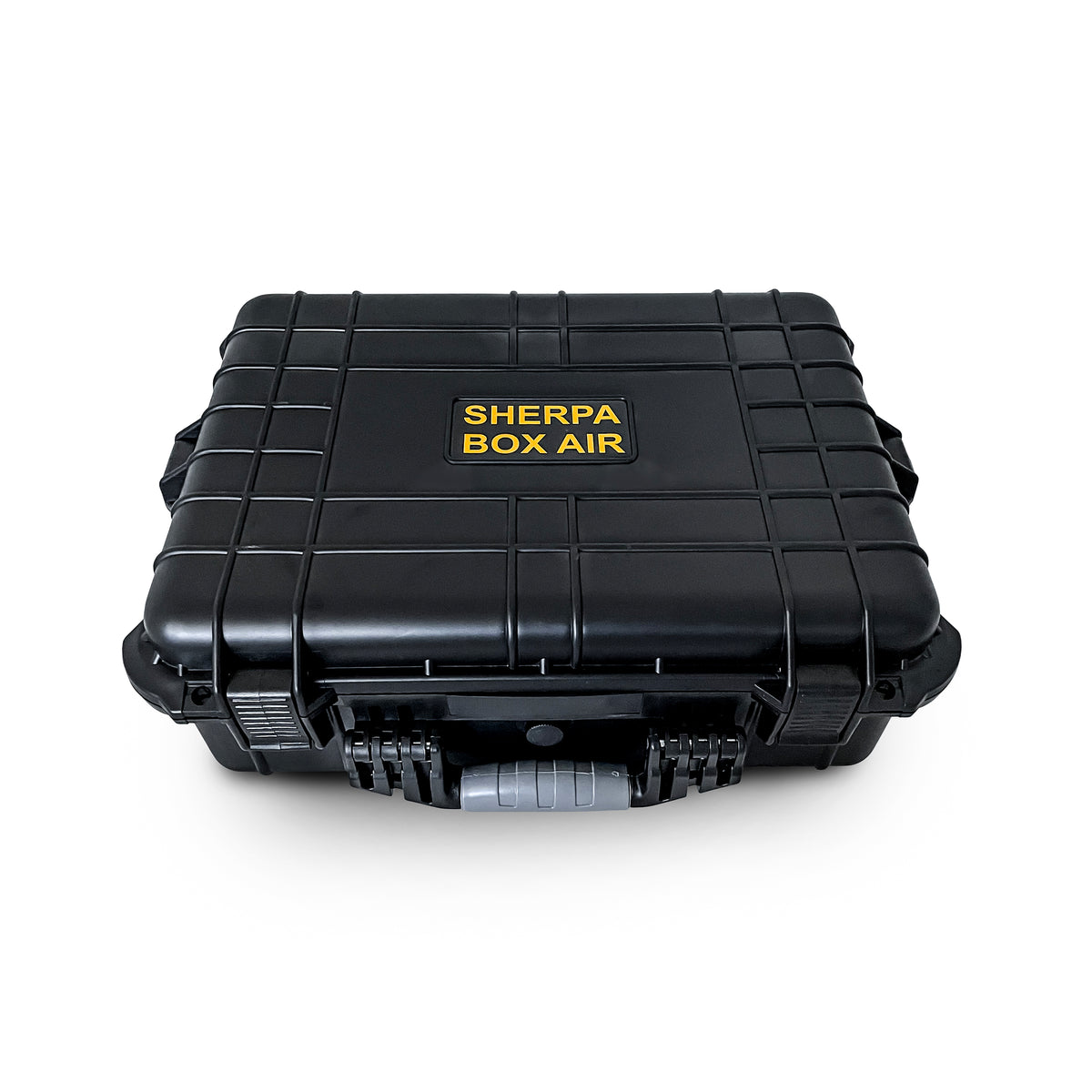

    The BOX AIR is contained in an extremely heavy duty, waterproof carry case. This case is easy to pack in your ute, on your roof rack or in the back of your wagon. Lay the BOX AIR out on the sand and you have a stable work platform which houses everything you need for inflation activities. All components fit inside the box easily without complex packing requirements.

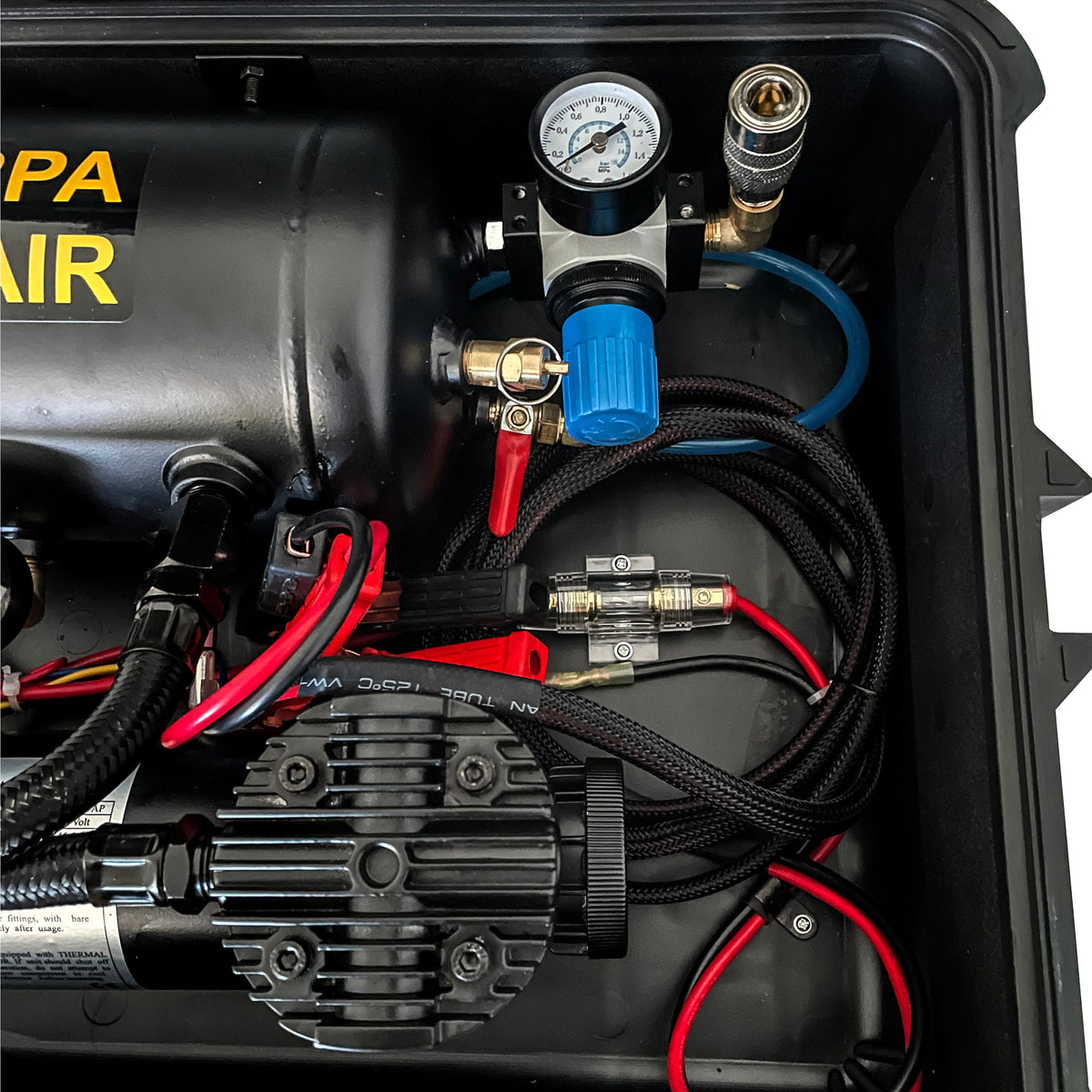

    Included with the air tank is a adjustable pressure regulator. The regulator is a neat feature that allows you to reduce the air pressure delivered from the high pressure tank. If you need to inflate air mattresses or pool toys and don't want 150 PSI causing havoc, you can reduce the output pressure to your preference. Set the regulator to 40 PSI and use it to inflate your tyres without risk of over inflation.

  • Model Sherpa BOX AIR

    Max. Operating Pressure

    300 PSI

    Pressure Switch Setting

    On 120psi / Off 150 PSI

    Relief Valve Setting

    180 PSI

    Air Tank Volume

    3.8 L

    Motor

    12V

    Max. Power Draw

    45 amps

    Fuse

    60 amps

    Solenoid Rating

    100 amps

    Duty Cycle

    30% @ 100 PSI

    Power Leads

    10ft (3m) with Alligator clips

    Air Line

    21ft (6.5m) PU

    Weight

    33lb (15 kg)

    Dimensions

    515 x 400 x 195mm

    Warranty

    12 months

    Performance Data:

    Pressure (PSI) Current (A) CFM

    0

    16

    4.2

    40

    30

    2.3

    90

    38

    1.9

    150

    41

    1.6

    200

    43

    1.3

    300

    45

    0.7

  • Winch Owner's Manual

    Grunter Boat Winch Owner's Manual

    ATV Winch Owner's Manual

    Winch Dimensions:

    'Mustang' 9,500Lb with 28m spool

    'Brumby' 10,000Lb high speed winch

    'Colt' 12,000Lb

    'Steed' 17,000Lb with 28m spool

    'Steed' 17,000Lb with 45m spool

    'Mule' 17,000Lb dual motor winch with 45m spool

    'Stallion'  25,000Lb winch with 30m spool

    Tow Truck Winch 20,000Lb

    'Grunter' boat trailer winches (Standard & HP Models)

    'Grunter' Boat Trailer Winch Mounting Bracket

    ATV Winch 4,500Lb

    ATV Winch 4,500Lb Mounting Plate

    Winch Control Box

    Wiring Diagrams:

    Dual Motor Winch Wiring Diagram

    Winch Solenoid Wiring Diagram

    Winch Weights:

    Winch Type Other 92ft (28m) Cable 92ft (28m) Rope 100ft (30m) Rope 100ft (30m) Cable 148ft (45m) Cable 148ft (45m) Rope
    ATV Winch 4,500Lb 15lb (7 kg) X X X X X X
    9,500Lb X 57lb (26 kg) 42lb (19 kg) X X X X
    10,000Lb (High Speed) X X 50lb (23 kg) X X X X
    12,000Lb X 66lb (30 kg) 50lb (23 kg) X X X X
    17,000Lb Single Motor X 60lb (30 kg) 50lb (23 kg) X X 88lb (40 kg) 57lb (26 kg)
    17,000Lb Dual Motor X X X X X 101lb (46 kg) 71lb (32 kg)
    Tow Truck Winch 20,000Lb X 100lb (45 kg) 66lb (30 kg) X X X X
    25,000Lb X X X 68lb (31 kg) 104lb (47 kg) X X

    Cable Data:

     Winch Type Cable Type Length Cable Size
    Grunter Boat Trailer Winches (All models)

    Positive (Power)

    7m (~23ft) 50mm²

    Negative (Earth)

    3m (~10ft) 32mm²

    Control Box Cables

    Various <1m (< ~3ft) From winch to control box only.  25mm²
    Grunter Cable Upgrade (Postive cable only)

    Positive (Power)

    10m (~32ft) 50mm²

    4x4 Winches (All models)

    Mustang, Colt, Steed, Mule, Brumby, Stallion, Tow Truck winch models.

    Positive (Power)

    1.8m (~6ft) 25mm²



    Negative (Earth)

    1.8m (~6ft) 25mm²

    Control Box Cables

    Various <1m (< ~3ft) From winch to control box only.  25mm²
    4x4 Winch Cable Upgrade

    Positive (Power)

    3m (~10ft) 25mm²

    Negative (Earth)

    3m (~10ft) 25mm²
    Big Air - Air Compressors (All models)

    Positive (Power)

    3m (~10ft) 16mm²

    Negative (Earth)

    3m (~10ft) 16mm²
